GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL

China GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL supplier
GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL supplier GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL supplier

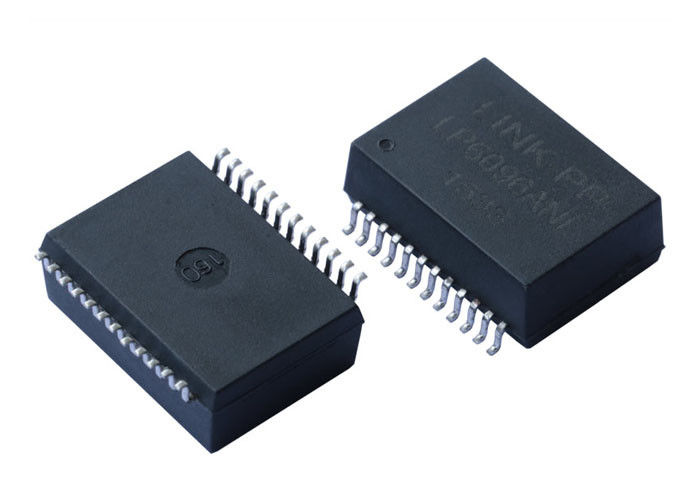

Large Image :  GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: GX2423SR

Payment & Shipping Terms:

Minimum Order Quantity: 350/1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
Specification: GX2423SR Update PN: LP6096ANL
Turns Ratio: 1CT:1CT Mounting: Surface Mount
Ethernet: 1x10/100/1000Mbps Power Isolation Voltage: 1500Vrms
Capability: 720mA DC Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

GX2423SR POE Telecom Transformer 1000 Base -T Magnetic Surface Mount LP6096ANL



Single Port, 1000 BASE-T Ethernet Transformer Modules, SMT,PoE+,Rohs
LINK-PP Part NumberLP6096ANL
Other Part NumberGX2423SR
Speed 1000BASE-T
Number of Ports SINGLE
Application - LANETHERNET (PoE+)
PackageSMD
Temperature- 40 TO + 85℃
AutomDX YES
CommentSAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.26
Package Height (mm) 6.6
Package Length (Inches) 0.697
Package Length (mm) 17.7
Package Width (Inches) 0.622
Package Width (mm) 15.8
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specification @25℃
1.Insertion Loss(dB Max):
0.1MHz: -1.2
1-125MHz: -2.0
2.Return Loss(dB Min):
1-40MHz: -16
40-100MHz: -10
3.Crosstalk(dB Min):
30MHz: -43
60MHz: -37
100MHz: -33
4.CMRR(dB Min):
30MHz: -30
200MHz: -15
5.DCR Balance: 1 Ω ±0.05Ω
6.OCL:
(1) 350uH Min @20mA DC Bias
(2) 120uH Min @30mA DC Bias
7.Temperature rise of 35℃ when supplying
800mA DC continuous over 4 pairs
8.Hipot:1500Vrms
9.Operating Temperature: -40℃~+85℃.

Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy

100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years

Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services

Our successful customer:
Texas Instruments: LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.
Intel: LINK-PP is the preferred supplier of Intel. LINK-PP LPJG16314A4NL is used in Minnow Board max of Intel.
Cisco: LINK-PP is the preferred supplier of Cisco. LINK-PP LPJ0011DNL is used in gate way of Cisco. Jabil is the OEM for this project.
Siemens: LINK-PP is the preferred supplier of Siemens. LINK-PP LP6096ANL is used in medical equipment of Siemens. Flextronics is the OEM for this project.
Samsung: LINK-PP is the preferred supplier of Samsung. LINK-PP LPJ0011BBNL is used in smart box of Samsung. Jabil is the OEM for this project.
