11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL

China 11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL supplier
11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL supplier 11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL supplier

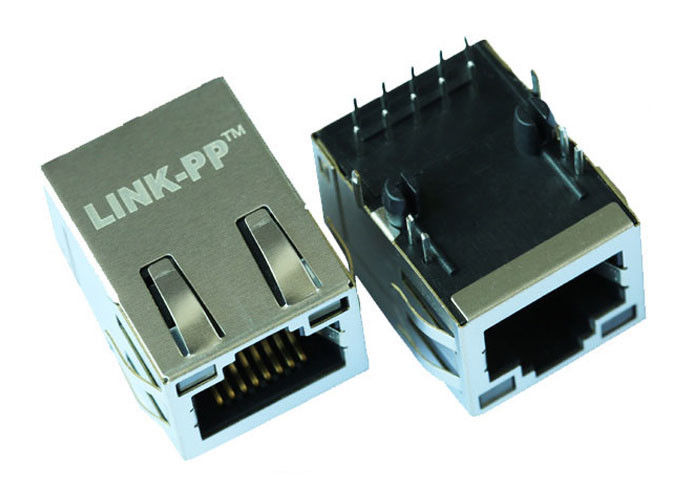

Large Image :  11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 11H559-5115-00

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1000Base-T
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: 11H559-5115-00 P/N: LPJG16520A28NL
Apllication: Magnetic RJ45 Jack 1000 BASE-T Category: Connectors, Interconnects
Mechanical: 21.30x15.90x13.40mm Shield Material: Brass
Samples: Free

11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL

Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJG16520A28NL
Other Part Number 11H559-5115-00
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.836
Package Length (mm) 21.50
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL
11H559-5115-00 Single Port RJ45 With Integrated Magnetics LPJG16520A28NL
