0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL

China 0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL supplier
0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL supplier 0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL supplier

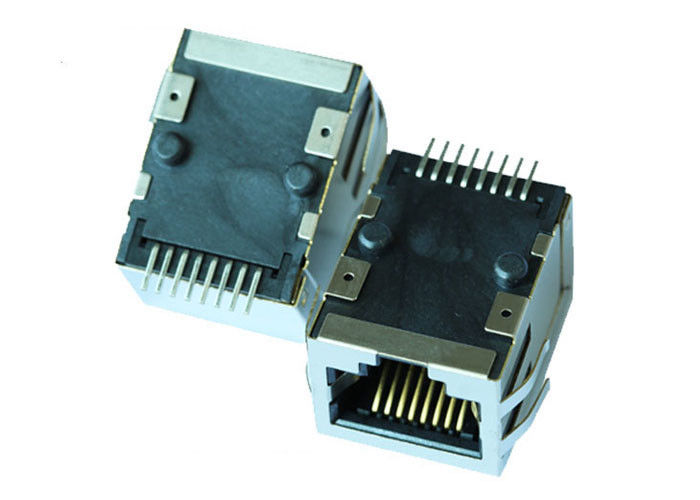

Large Image :  0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 0855437001

Payment & Shipping Terms:

Minimum Order Quantity: 1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Specification: 0855437001 Part Number: LPJE8802CNL
Munafactuer: 8Pin SMT Orientation: Right Angle (Side Entry)
Style: Surface Mount Samples: Available Free

0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL

SMT 1x1 Port RJ45 Magjack Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJE8802CNL
Molex Part Number 0855437001
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.463
Package Height (mm) 11.75
Package Length (Inches) 0.734
Package Length (mm) 18.65
Package Width (Inches) 0.620
Package Width (mm) 15.74
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical:
1.Voltage rating : 125 VAC RMS
2.Current Rating : 1.5 AMP
3.Contact resistance : 20 mΩ Max
4.Insulation resistance : 1000 MΩ Min @500V DC
5.Dielectric strength : 1000 VAC RMS 50Hz,1MIN.
MECHANICAL:
1.Housing & Insert Material : PBT UL94V-0.
2.Contact Material : Phospor bronze T=0.30mm
3.Plating :Gold Plating OVER nickel,
Gold plated on content area 3U"
4.Operating Life : 750 Cycles Min.

ENVIRONMENTAL:
1.Storage : -40℃ ~ +85℃
2.Operation : -40℃ ~ +85℃.
3.Wave solder temperature : 265℃ 5 Sec MAX
Gold Plating:
1.5U;3U;6U;16U;30U



0855437001 1*1 Port SMT RJ45 Magjack Connector Without Magnetic LPJE8802CNL

Texas Instruments: LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.



FAQ

Q:Are you a factory or a trading company?

A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.



Q:Can I get a free sample?

A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.



Q:How long is your delivery?

A:5-7 days in case of stock, normal is 2-3 weeks delivery



Q:What are your payment terms?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram



Q:What are the ways you transport goods?

A:90% Off Shipping Cost By DHL UPS DEDEX Or TNT
