KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL

China KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL supplier
KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL supplier KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL supplier

Large Image :  KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: KH1603SR

Payment & Shipping Terms:

Minimum Order Quantity: 1200
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: KH1603SR Part No: LP9016NL
Ethernet: 1x10/100Mbps Pins: 16 Pins
Samples: Free Available Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

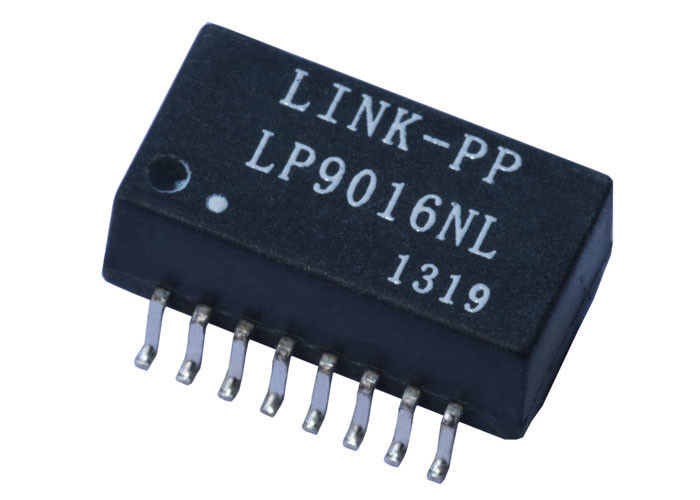

KH1603SR 10/100Base-T Single Port Ethernet Magnetic Transformers Module LP9016NL



10/100 Base -T Single Port Transformer Modules, SMD,Rohs
LINK-PP Part Number LP9016NL
Other Part Number KH1603SR
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.280
Package Height (mm) 7.12
Package Length (Inches) 0.451
Package Length (mm) 11.45
Package Width (Inches) 0.281
Package Width (mm) 7.14
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications: @25℃
1. Turns Ratio:
PIN(1-3):PIN(16-14)=1:1
PIN(6-8):PIN(11-9)=1:1
2. Primary Inductance PIN(1-3)&PIN(6-8):
350uH MIN.@8mA DC Bias/100KHz/100mV
3. Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss:
1-30MHz:-16dB Min
30-60MHz:-[16-20log(f/30MHz)]dB Typ
60-80MHz:-10dB Min
5.Crosstalk:
1-60MHz:-40dB Typ
60-100MHz:-35dB Typ
6.CMRR:
1-60MHz:-45/-40dB Min
60-100MHz:-40/-35dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃~+70℃.
