855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry

China 855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry supplier
855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry supplier 855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry supplier

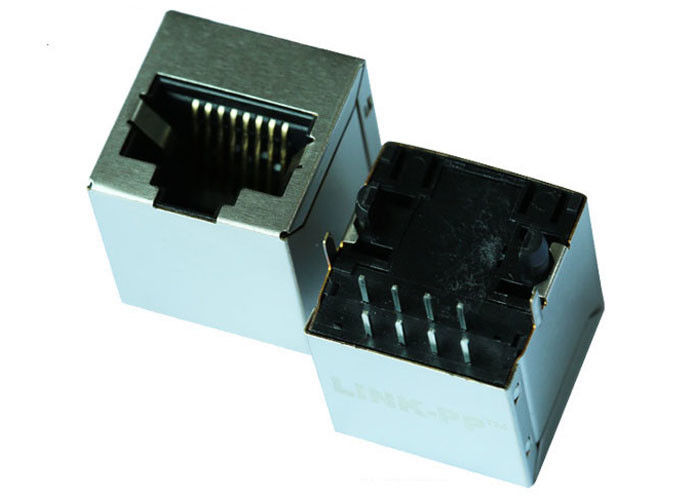

Large Image :  855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001 Reach
Model Number: LPJE601XDNL

Payment & Shipping Terms:

Minimum Order Quantity: 1000 / 5K,50K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 2weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: 855085001 Alternate: LPJE601XDNL
Ethernet: UTP Cat5,5E Cross Rf: LPJE601XDNL = 855085001 Molex
Application-Lan: Ethernet(NoN PoE) Temperature: -40 TO + 85

855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry

Quick Details

1. Top Entry LPJE601XDNL
2.Vertical PCB RJ45 Jack Pin  to Pin Layout Compatible
3. Equivalent to Molex Module 85508-5001
4.Application : PC Mainboard, SDH, PDH Minimum 1500Vrms

Vertical RJ45 Connector in Networking without Integrated Magnetics,without LED,RoHS
LINK-PP Part Number LPJE601XDNL
Molex Part Number 855085001
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option without LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

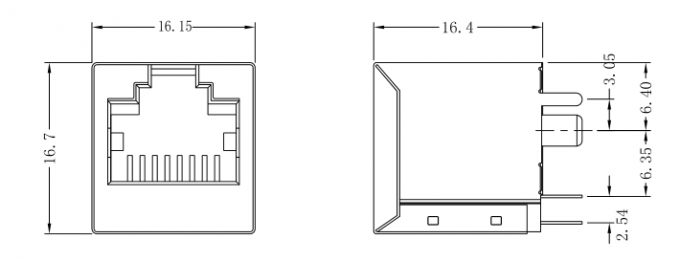

Package Height (Inches) 0.646
Package Height (mm) 16.40
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.638
Package Width (mm) 16.20
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed RJ45 with Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry
Metal Modular Jacks Rj45 With 10 / 100m , Vertical Rj45 Connector

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Competitive Advantage:

16 years production experience,
1100 staff,
100% test
Flexible delivery time

855085001 Vertical RJ45 Jack 8P8C Shielded Modular Connector Top Entry
