G2401SR 1000 BASE-T Gigabit Ethernet Transformer Modules LP5004NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: G2401SR

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

gigabit magnetics transformer

,

ethernet transformer

Item:
G2401SR
Cross P.N:
LP5004NL
Pin No:
24 Pins
Series:
Single Port GigE Transformer
Termination Style:
SMD/SMT
Samples:
Free Offer
Item:
G2401SR
Cross P.N:
LP5004NL
Pin No:
24 Pins
Series:
Single Port GigE Transformer
Termination Style:
SMD/SMT
Samples:
Free Offer

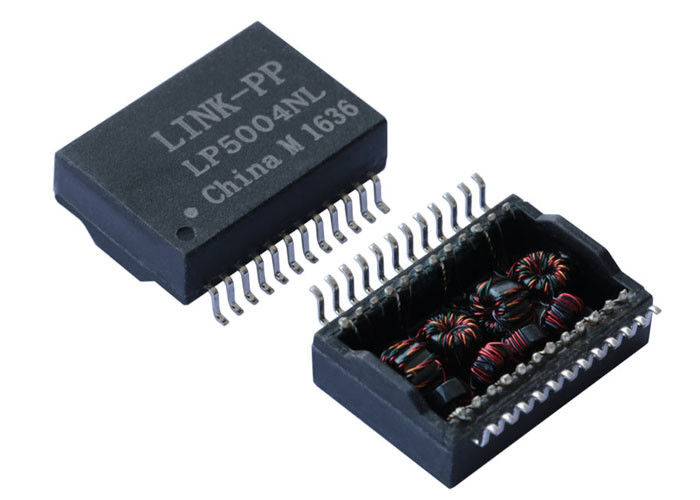

G2401SR 1000 BASE-T Gigabit Ethernet Transformer Modules LP5004NL
G2401SR 1000 BASE-T Gigabit Ethernet Transformer Modules LP5004NL



Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5004NL
Other Part Number G2401SR
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.70
Package Width (Inches) 0.65
Package Width (mm) 16.51
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Features
■ Ethernet Magnetic Transformers LP5004NL Equivalent to HX5004NL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables



Why Choose Us

Roduct Warranty

1. Guarantees 100% compliance CE,Rohs

2. Lenth:Custom.

3. Molded-strain relief construction for flexible movement, durability, and fit.

4. Reduces cross talk and interference with aluminum undermold contacts

Our Services

1. OEM/EDM service

2. Fast delivery

3. Most of the payment are accepted

4. Design and produce goods according to clinet's requirement.

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
Bulk Packing: 200pcs/bag
2: Upon customers' request

Payment & Delivery

Payment: T/T and PayPal. We'll show you the photos of the products and packages.
Delivery time: 10-15 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.

FAQ

1. Q: Can you do OEM project?

A:Yes, no problem. Custom logo and custom packing will be no problem for us. For example, custom artworks and patterns printing on phone cases, and OEM brand rj45 connector, lan transformer etc. with your own logos.

2. Q: Is quality guaranteed? How LINK-PP do QC?

A: Definitely, quality is the most important factor to maintain a company's reputation, so it's a must! Product Quality is always strictly controlled by our QC staff members before delivery. It is promised and gaurateed! If you have time and would like to visit our factory before ordering, you will be highly welcome!

3. Q: Is it safe to deal with LINK-PP?

A: Of course, LINK-PP has been a verified gold supplier of Alibaba, has exported all over the world. LINK-PP Is The Preferred Manufacturer Of Intel TI and Samsung.

4. Q: Can LINK-PP provide the best service?

A: Of couse. LINK-PP has a great sales team, professional and helpful, always try the best to offer the best service to you!

5. Q: are you accept Paypal?

A:for the first cooperation, you can pay through Escrow or Paypal if worry about the safty.
