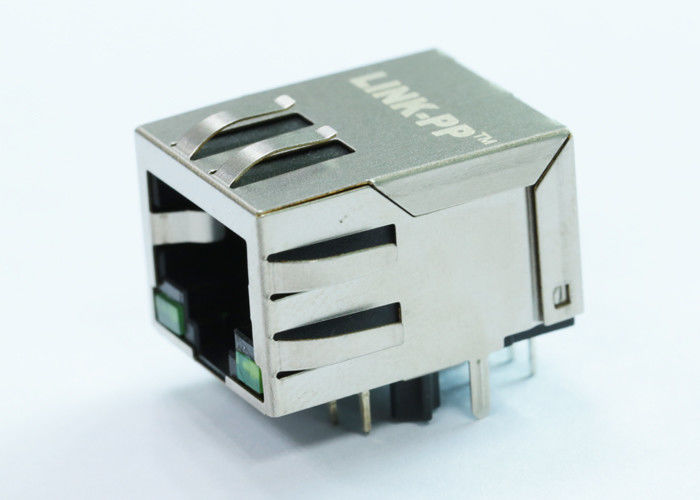

RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL

China RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL supplier
RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL supplier RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL supplier

Large Image :  RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: RB1-1Q9BAK1A

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Product Name: RB1-1Q9BAK1A P-N: LPJG0803A27NL
TAB Direction: Down Mounting: THT PCB Mounting
LED Indicator: GREEN/GREEN&ORANGE Samples: Free

RB1-1Q9BAK1A Gigabit Magnetic RJ45 Jack with 1000 Base-T Magnetics LPJG0803A27NL



Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Green&Orange LED,Tab Down,RoHS
LINK-PP Part Number LPJG0803A27NL
UDE Part Number RB1-1Q9BAK1A
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option GREEN/GREEN&ORANGE
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
