LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LMJ2138814S0L1T1C

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Optional

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

modular jacks rj45

,

multi port connector

Part Number:
LMJ2138814S0L1T1C
PIN TO PIN:
LPJD4012BHNL
Speed:
10/100 BASE-T
Temperature:
-40 TO +85℃
File:
PDF/3D/ISG/Stp/Step/Datasheet
Samples:
Free
Part Number:
LMJ2138814S0L1T1C
PIN TO PIN:
LPJD4012BHNL
Speed:
10/100 BASE-T
Temperature:
-40 TO +85℃
File:
PDF/3D/ISG/Stp/Step/Datasheet
Samples:
Free

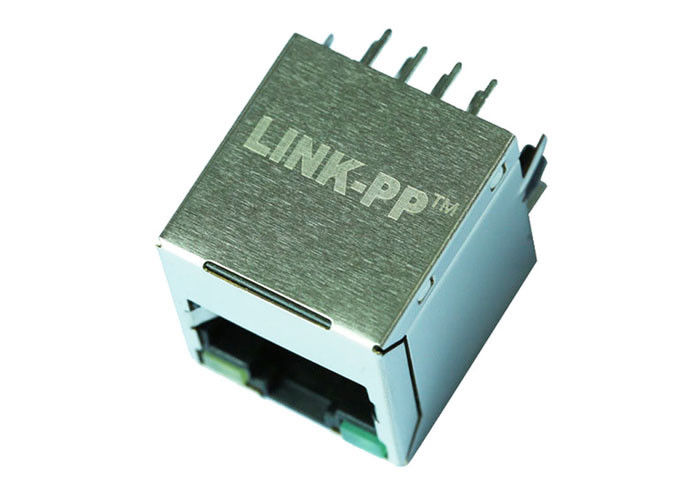

LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL
LMJ2138814S0L1T1C Vertical RJ45 Jack With 10/100 Base-T Magnetic LPJD4012BHNL



Shielded Vertical RJ45 Magnetic Ethernet Connector with 10/100 Base-T Integrated Magnetics ,Green/Yellow LED,RoHS
LINK-PP Part Number LPJD4012BHNL
Amphenol Part Number LMJ2138814S0L1T1C
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Vertical
PCB Retaining Post T POST
Package Height (Inches) 0.657
Package Height (mm) 16.70
Package Length (Inches) 0.665
Package Length (mm) 16.90
Package Width (Inches) 0.636
Package Width (mm) 16.15
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
