Home > products > Vertical RJ45 Jack > A00-108-220-450 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE681NNL

A00-108-220-450 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE681NNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: A00-108-220-450

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

modular jacks rj45

,

multi port connector

Part Number:
A00-108-220-450
Mass Production:
LPJE681NNL
Termination:
Solder
LEDs:
Optional
Type:
DIP / Top Entry
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
A00-108-220-450
Mass Production:
LPJE681NNL
Termination:
Solder
LEDs:
Optional
Type:
DIP / Top Entry
File:
PDF/3D/ISG/Stp/Step/Datasheet

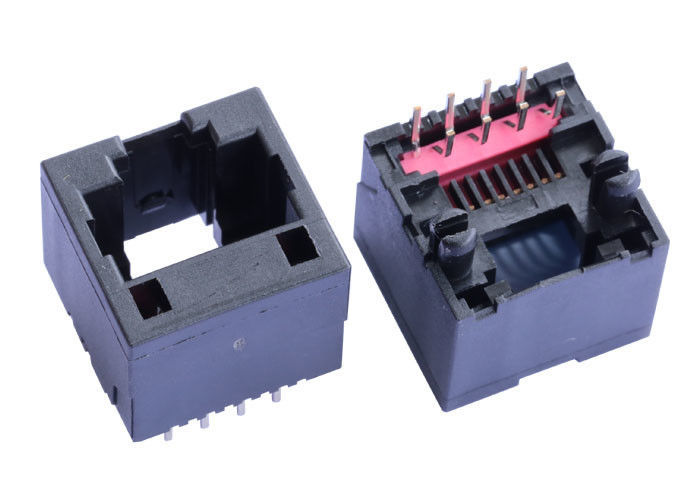

A00-108-220-450 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE681NNL
A00-108-220-450 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE681NNL



Description

Vertical 8P8C RJ45 Female Connector without Integrated Magnetics,Without LED,RoHS
LINK-PP Part Number LPJE681NNL
Other Part Number A00-108-220-450
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.634
Package Height (mm) 16.10
Package Length (Inches) 0.632
Package Length (mm) 16.05
Package Width (Inches) 0.604
Package Width (mm) 15.35
Pin Type Vertical
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed NON
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



FAQ

*Q:Can I get samples from you?

A:We are honored to offer you samples for quality check.

*Q:What parts are manufactured by you?

A:All of frame parts are manufactured by us.

*Q:What's the leading time? (How long do you need to prepare my goods?)

A:5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q:How long do I need to wait before my goods arrive?

A:3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.
