XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

China XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL supplier
XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL supplier XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL supplier

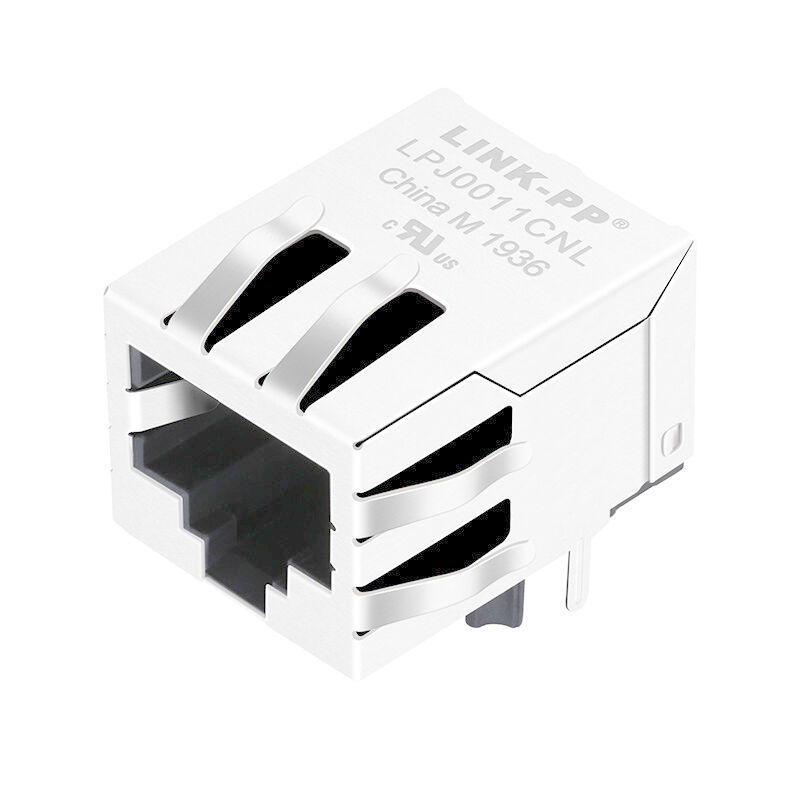

Large Image :  XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: XRJF-01A-0-D22-010

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part Number: XRJF-01A-0-D22-010 Specification: LPJ0011CNL
Cross&Datasheet: LPJ0011CNL Apllication: 10/100 Or 1000Base-T(x)
Original Munafactuer: LINK-PP Mail Customer: Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics

XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics ,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJ0011CNL
X multiple Part Number XRJF-01A-0-D22-010
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes No
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 BASE-T
Temperature 0 TO +70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL


XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL
