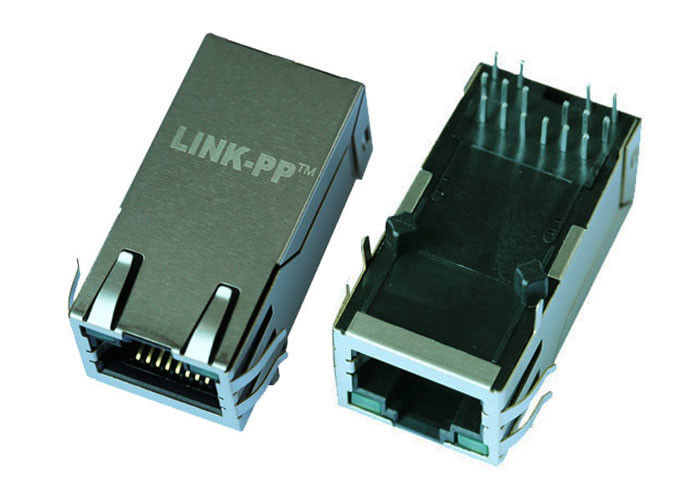

XRJH-01S-1-HL1-170 Magnetic RJ45 Connector Power Over Ethernet LPJK0077AGNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XRJH-01S-1-HL1-170

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Negotiable & Supportive

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 with magnetics

Product Name:
XRJH-01S-1-HL1-170
Power Standards:
IEEE 802.3af/at
Ethernet:
1000BT Or Gigabit
Pin To Pin:
LPJK0077AGNL
Orientation:
Right Angle
LEDs:
Yello / Green
Product Name:
XRJH-01S-1-HL1-170
Power Standards:
IEEE 802.3af/at
Ethernet:
1000BT Or Gigabit
Pin To Pin:
LPJK0077AGNL
Orientation:
Right Angle
LEDs:
Yello / Green
XRJH-01S-1-HL1-170 Magnetic RJ45 Connector Power Over Ethernet LPJK0077AGNL
XRJH-01S-1-HL1-170 Magnetic RJ45 Connector Power Over Ethernet LPJK0077AGNL



LINK-PP Part Number: LPJK0077AGNL
X Multiple Part Number: XRJH-01S-1-HL1-170
Speed: 10/100/1000 Base-T
Number of Ports: SINGLE
Application-Lan: Ethernet(NoN PoE)
Latch: Up
PIN Type: THT Solder
Temperature: 0 TO + 70
Package Height (mm): 13.50
Package Length (mm): 33.02
Package Width (mm): 16.60

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
