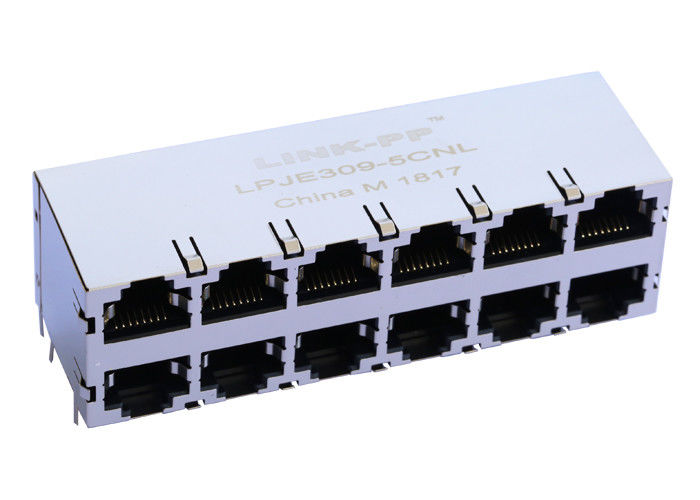

SS73100-046F Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJE309-5CNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: SS73100-046F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Spec:
SS73100-046F
Alternate:
LPJE309-5CNL
Family:
12 Port Magnetic Rj45
Mounting:
Through Hole
Standard:
IEEE802.3af/ Ieee802.3at
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
SS73100-046F
Alternate:
LPJE309-5CNL
Family:
12 Port Magnetic Rj45
Mounting:
Through Hole
Standard:
IEEE802.3af/ Ieee802.3at
File:
PDF/3D/ISG/Stp/Step/Datasheet
SS73100-046F Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJE309-5CNL
1840257-6 Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJG67020A27NL

2X6 Port 8P8C RJ45 Female Connector with 1000 Base-T Transformer,Green/Orange&Green LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJG67020A27NL
Part Number
1840257-6
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Orange&Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X6
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 3.426
Package Width (mm) 87.02
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
SS73100-046F Stacked 2x6 Port Magjack 8P8C Rj45 Modular Jack LPJE309-5CNL 0
