Home > products > RJ45 Modular Jack > 43202-8104 Unshielded Tab Down RJ45 Single Port Connector LPJE180NNL

43202-8104 Unshielded Tab Down RJ45 Single Port Connector LPJE180NNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 43202-8104

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50PCS/tray;1200PCS/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4000K/month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Specification:
43202-8104
Cross Part NO:
LPJE180NNL
Mounting:
Thru-hole R/A
Samples:
Available 2-3 Pcs
Latch:
Tab Down
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
43202-8104
Cross Part NO:
LPJE180NNL
Mounting:
Thru-hole R/A
Samples:
Available 2-3 Pcs
Latch:
Tab Down
Files:
PDF/3D/ISG/Stp/Step/Datasheet

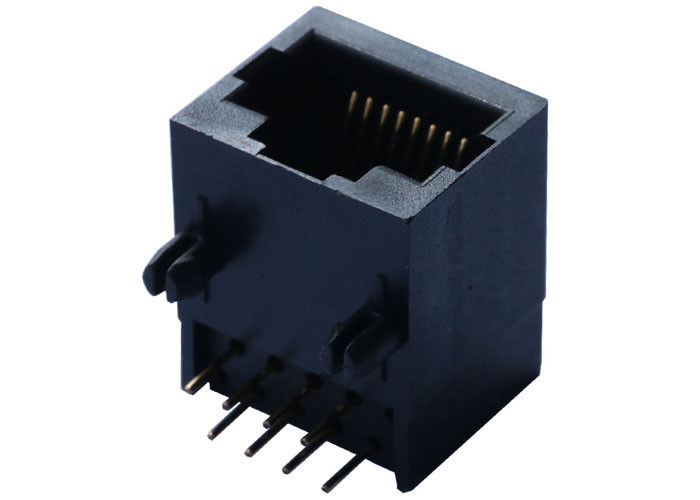

43202-8104 Unshielded Tab Down RJ45 Single Port Connector LPJE180NNL
43202-8104 Unshielded Tab Down RJ45 Single Port Connector LPJE180NNL



Unshielded 1x1 Port Phone 8P8C RJ45 Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJE180NNL
Molex Part Number 43202-8104
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.453
Package Height (mm) 11.50
Package Length (Inches) 0.699
Package Length (mm) 17.75
Package Width (Inches) 0.594
Package Width (mm) 15.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed RJ45 Without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
