203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL

China 203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL supplier
203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL supplier 203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL supplier

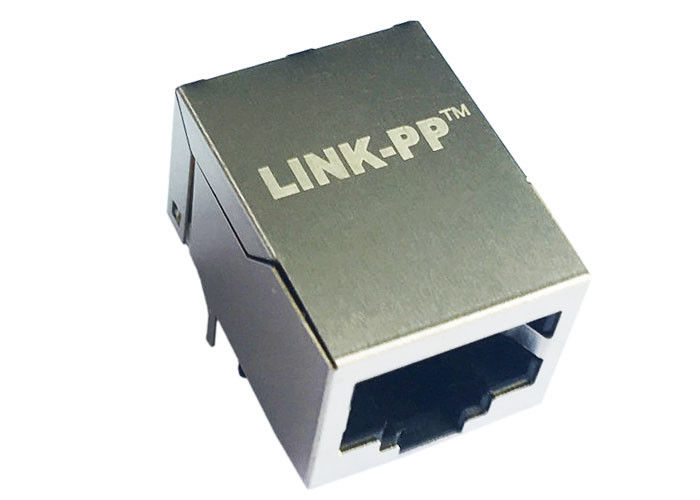

Large Image :  203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: 203B08-11100-20

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Supportive
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 100K-PCS/Month
Contact Now
Detailed Product Description
Specifications: 203B08-11100-20 Part No: LPJEF180DNL
Ethernet: Cat5,5E Standard: IEEE802.3
Samples: Available Files: PDF/3D/ISG/Stp/Step/Datasheet

203B08-11100-20 Single Port Rj45 1x1 8P8C THT Shield No LEDs LPJEF180DNL



1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJEF180DNL
Other Part Number
203B08-11100-20
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 12.23
Package Length (Inches) 0.719
Package Length (mm) 18.40
Package Width (Inches) 0.618
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed -
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



NOTES:
Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 20 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating 3u Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃ 2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



Other Available List:

LPJEF180XCNL

LPJEF1802DNL LPJEF1802CNL LPJEF1805CNL LPJEF1803DNL
LPJEF180-0CNL LPJEF1800CNL LPJEF1803CNL LPJEF1801DNL LPJEF1804DNL
LPJEF1800DNL LPJEF1801CNL LPJEF184CNL LPJEF1802DNL LPJEF1805DNL
