Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JFM38113-2NH4-4F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
JFM38113-2NH4-4F |
Cross&Datasheet: |
JXD1-0015NL |
Apllication: |
1000 Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
JFM38113-2NH4-4F |
Cross&Datasheet: |
JXD1-0015NL |
Apllication: |
1000 Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

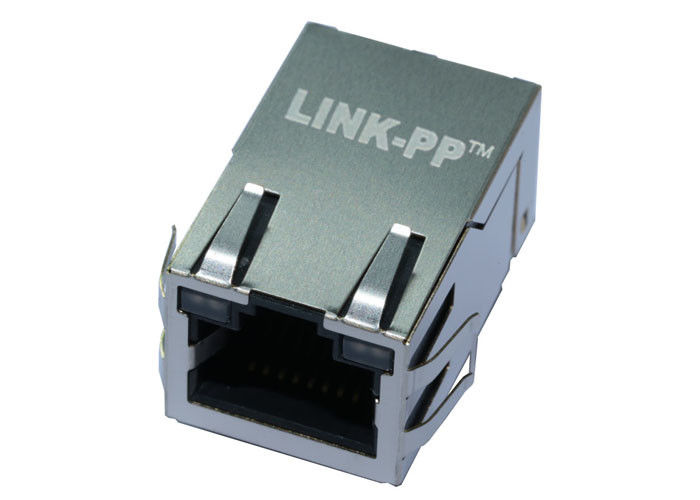

| Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics, Green/Yellow LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJG17308-1AHNL |
| Other Part Number | JFM38113-2NH4-4F |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.00 |
| Package Length (mm) | 25.40 |
| Package Width (Inches) | 0.640 |
| Package Width (mm) | 16.25 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
