RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL

China RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL supplier
RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL supplier RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL supplier

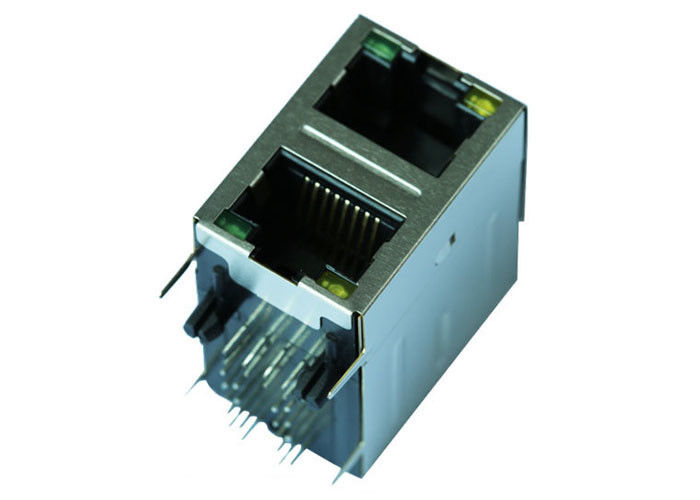

Large Image :  RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: RM3-ZZ-0078

Payment & Shipping Terms:

Minimum Order Quantity: 350 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: RM3-ZZ-0078 Made In China: LPJG17549B47NL
Family: Rj45 Network Port Interface: 10/100Base-TX
LED: Flexible Samples: Available

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL



2X1 8p8c RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics,Yellow&Green/Yellow&Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJG17549B47NL
Other Part Number RM3-ZZ-0078
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow&Green/Yellow&Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.996
Package Height (mm) 25.29
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 0.675
Package Width (mm) 17.15
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 10/100/1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Application field

1) MEDICAL

Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis

2) NETWORKING

Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet

3)TELECOM/DATACOM

Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices

3) CONSUMER

Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices

4) SECURITY

Control Panels, Fire Alarm Zones, Hand Held Devices

Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL
