955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL

China 955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL supplier
955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL supplier 955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL supplier

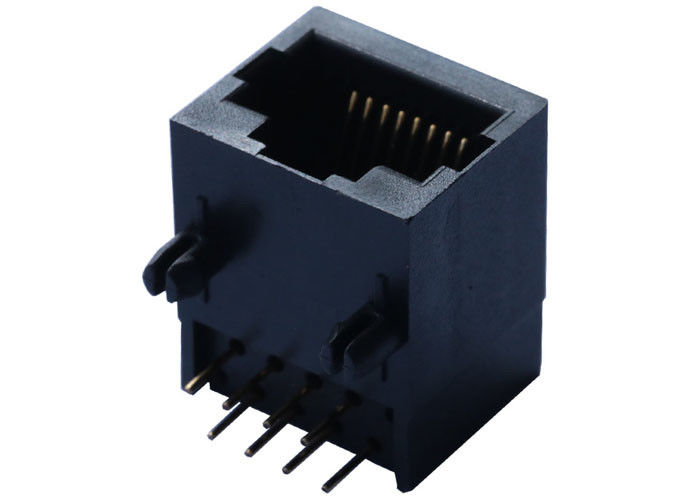

Large Image :  955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: 955012661

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive&Discounted
Packaging Details: 50PCS/tray;1200PCS/carton
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Specification: 955012661 Cross Part NO: LPJE179XNNL
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab Down Files: PDF/3D/ISG/Stp/Step/Datasheet

955012661 Unshielded 1x1 Port RJ45 Female Connector Without Magnetic LPJE179XNNL



Unshielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJE179XNNL
Molex Part Number 955012661
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.453
Package Height (mm) 11.50
Package Length (Inches) 0.699
Package Length (mm) 17.75
Package Width (Inches) 0.520
Package Width (mm) 13.21
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed RJ45 without magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
