Specifications: 24HSS1041-2HF P/N: LP5004NL
Ethernet: 1x10/100Mbps Mounting: SMD
Measure: 17.70x15.80x6.60mm Samples: Free

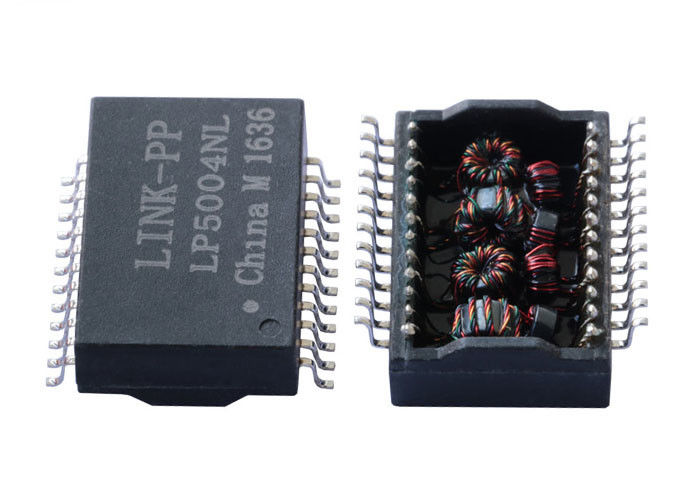

24HSS1041-2HF 1000Base-T Magnetics Transformer Single Port 24pins SMD LP5004NL


1. 1000Base-T Magnetics Transformer
2. Isolation Voltage:1500Vrms
3. 10/100/1000Mbps Ethernet Isolation Transformer

4. 24 pins Surface Mounting Transformer

5. LINK-PP LP5004NL Magnetic for Gigabit Ethernet

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5004NL
Bothhand Part Number 24HSS1041-2HF
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.70
Package Width (Inches) 0.65
Package Width (mm) 16.51
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side


Applications



Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
