Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: KRJ-5228S8P8CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Design PN#: |
KRJ-5228S8P8CNL |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
LED: |
Flexible |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
LPJE618-1NNL |
Design PN#: |
KRJ-5228S8P8CNL |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
LED: |
Flexible |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
LPJE618-1NNL |

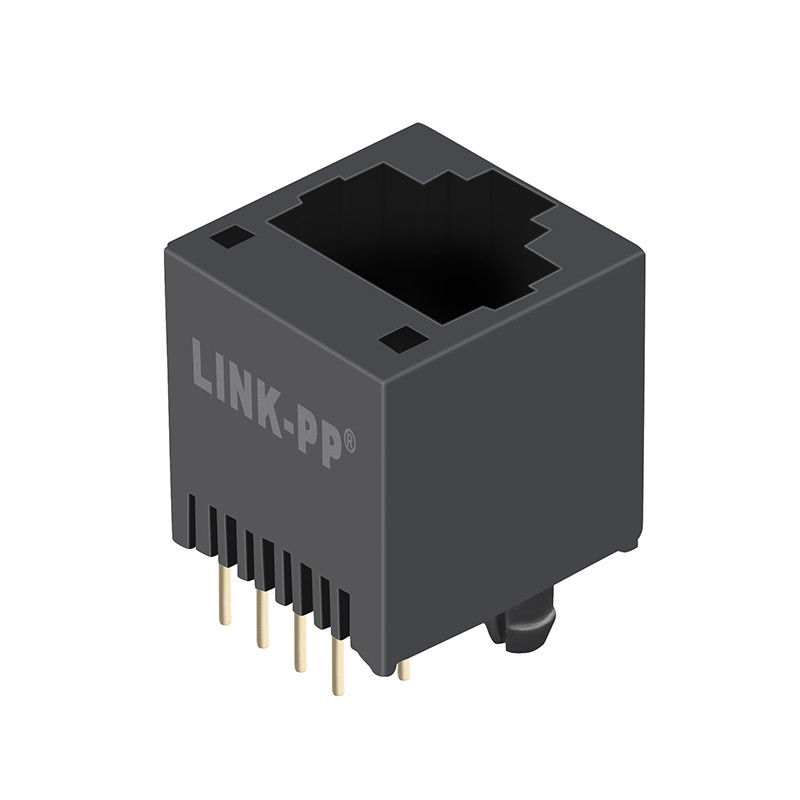

| Vertical 8P8C Unshielded RJ45 Female Connector without Integrated Magnetics,Without LED,RoHS | |
| LINK-PP Part Number | LPJE618-1NNL |
| Other Part Number | KRJ-5228S8P8CNL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NON |
| Diodes | NO DIODES |
| LED Option | without LEDS |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.645 |
| Package Height (mm) | 16.38 |
| Package Length (Inches) | 0.625 |
| Package Length (mm) | 15.88 |
| Package Width (Inches) | 0.605 |
| Package Width (mm) | 15.36 |
| Pin Type | Vertical |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT,Unshielded |
| Speed | NON |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
