Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H16101MC
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
H16101MC |
Cross: |
LP1102NL |
Family: |
Ethernet Transformer |
Interface: |
10/100base-T |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
H16101MC |
Cross: |
LP1102NL |
Family: |
Ethernet Transformer |
Interface: |
10/100base-T |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

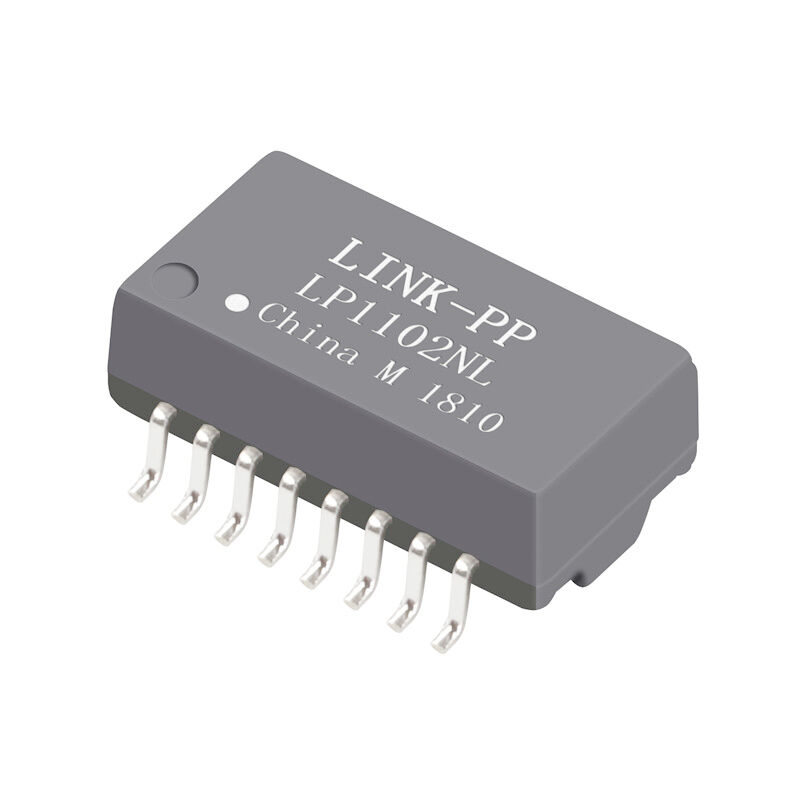

| Single Port, 10/100 BASE-T Ethernet Lan Transformer Modules, SMT,Rohs | |
| LINK-PP Part Number | LP1102NL |
| Other Part Number | H16101MC |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (Non PoE) |
| Package | SMD |
| Temperature | -40 TO + 85 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | C,T |
| Configuration TX | C,T |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.201 |
| Package Height (mm) | 5.10 |
| Package Length (Inches) | 0.366 |
| Package Length (mm) | 9.30 |
| Package Width (Inches) | 0.504 |
| Package Width (mm) | 12.8 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
