Home > products > Magnetic RJ45 Jack > HR971149C Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LPJ1026AGNL

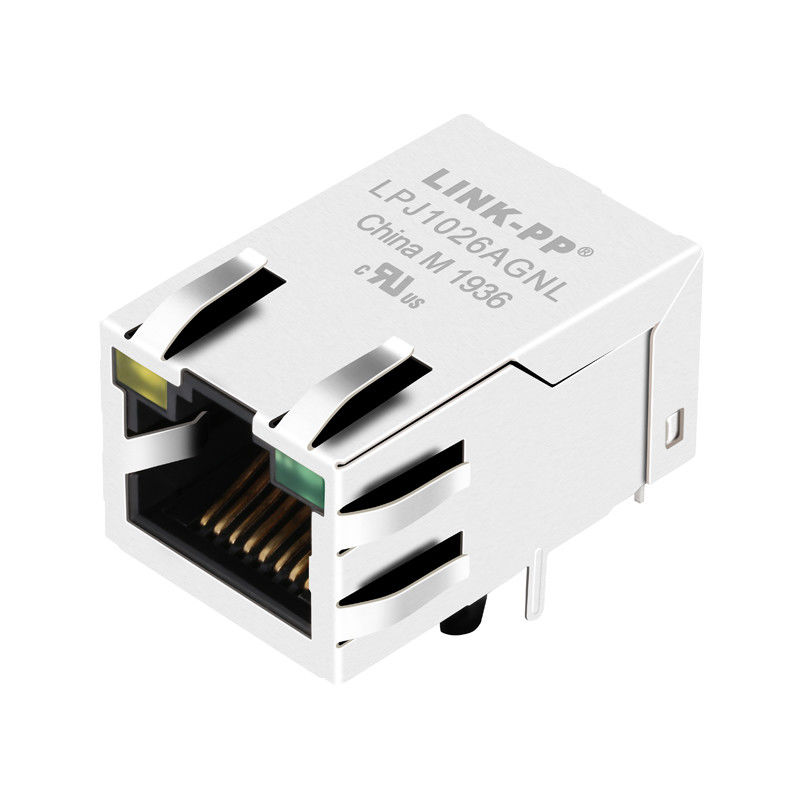

HR971149C Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LPJ1026AGNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HR971149C

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Specifications:
HR971149C
P-N:
LPJ1026AGNL
Ethernet:
1x 10/100Mbps Port
Mounting:
PCB,THT
Indicator:
G-Y LEDs
Samples:
Free
Specifications:
HR971149C
P-N:
LPJ1026AGNL
Ethernet:
1x 10/100Mbps Port
Mounting:
PCB,THT
Indicator:
G-Y LEDs
Samples:
Free
HR971149C Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LPJ1026AGNL
HR971149C Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LPJ1026AGNL

Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab UP,RoHS
LINK-PP Part NumberLPJ1026AGNL
HanRun Part NumberHR971149C
Application-LanETHERNET(NoN PoE)
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port4
DiodesNO DIODES
LED OptionYellow/Green LEDs
LatchTAB UP
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Package Height (Inches) 0.530
Package Height (mm) 13.45
Package Length (Inches) 0.994
Package Length (mm) 25.25
Package Width (Inches) 0.636
Package Width (mm) 16.15
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWith
Speed10/100 Base-T
Temperature0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
