HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL

China HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL supplier
HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL supplier HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL supplier

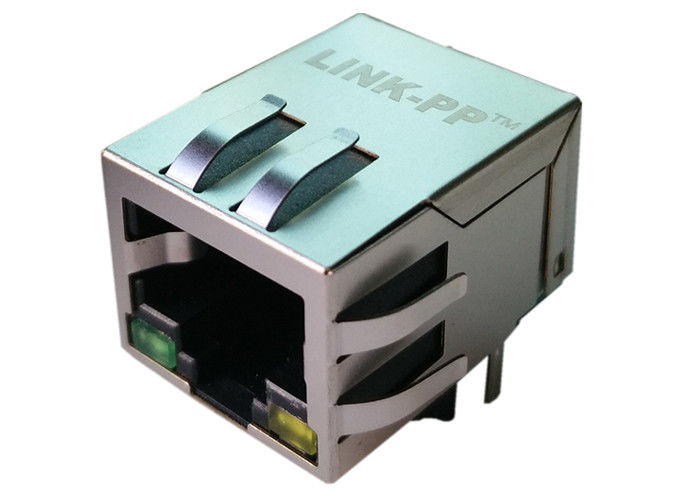

Large Image :  HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: HFJ11-E003E-S4L21RL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive&Discount
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: HFJ11-E003E-S4L21RL Part No: LPJ4012GDNL
Ethernet: 10/100Mbps Turn Ratio: 1CT:1CT
Mounting: Right Angle 90 Degree Samples: Available

HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield LPJ4012GDNL



Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS
LINK-PP Part NumberLPJ4012GDNL
Halo Part NumberHFJ11-E003E-S4L21RL
Application-LanETHERNET(NoN PoE)
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port4
DiodesYES
LED OptionYellow/Green
LatchTAB Down
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWith
Speed10/100 Base-T
Temperature-40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

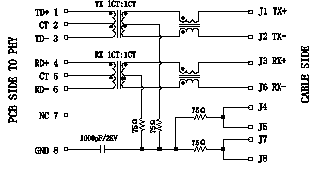

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
-1dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃
