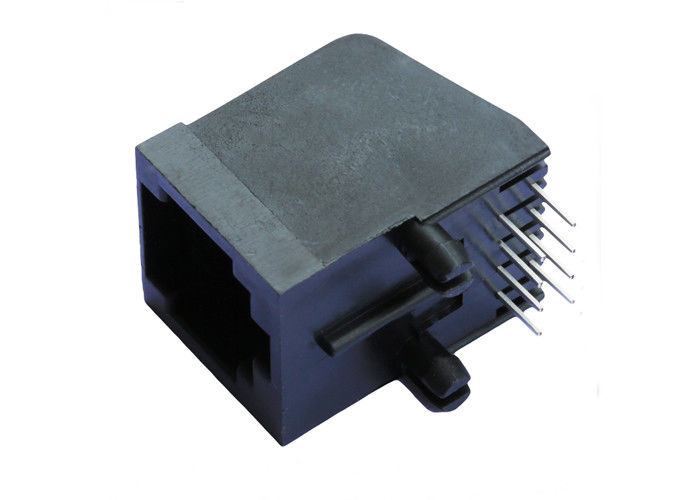

TS8P8C-PCB-E Unshielded RJ45 Female Connector without Magnetic LPJEF110CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: TS8P8C-PCB-E

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 with magnetics

Specifications:
TS8P8C-PCB-E
Type:
LPJEF110CNL
PCB Mounting Orientation:
Side Entry (Right Angle)
Mounting:
PCB
RoHS Compliant:
Yes
Samples:
Available
Specifications:
TS8P8C-PCB-E
Type:
LPJEF110CNL
PCB Mounting Orientation:
Side Entry (Right Angle)
Mounting:
PCB
RoHS Compliant:
Yes
Samples:
Available
TS8P8C-PCB-E Unshielded RJ45 Female Connector without Magnetic LPJEF110CNL
TS8P8C-PCB-E Unshielded RJ45 Female Connector without Magnetic LPJEF110CNL

Unshielded RJ45 Female Connector without Integrated Magnetics without LED,Tab Down,RoHS
LINK-PP Part Number LPJEF110CNL
Other Part Number TS8P8C-PCB-E
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.520
Package Height (mm) 13.20
Package Length (Inches) 0.722
Package Length (mm) 18.34
Package Width (Inches) 0.624
Package Width (mm) 15.86
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed RJ45
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
