1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL

China 1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL supplier
1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL supplier 1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL supplier

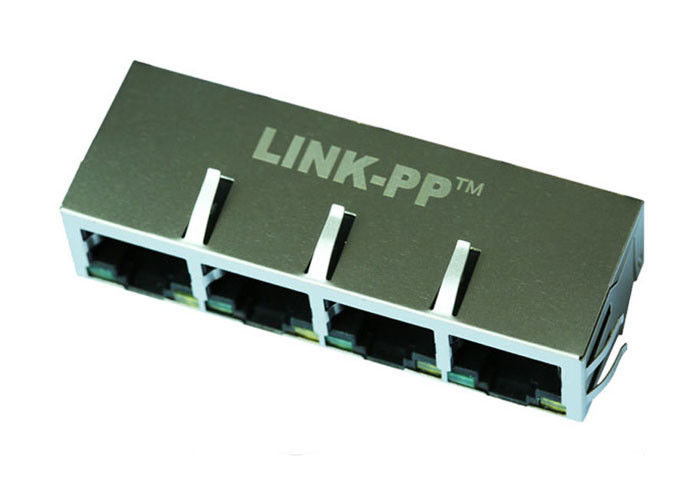

Large Image :  1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: LPJG46928AFNL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: LPJG46928AFNL Application-Lan: Ethernet(PoE+)
Gender: Female,Receptacle Plating: Gold Or Tin Plate,OEM
RJ45 Connector: 1 X 4 Port Muti-port,Custom File: PDF/3D/ISG/Stp/Step/Datasheet

1x4 Port 1000 Base-T Magnetics Magjack RJ45 Connector With POE+ LPJG46928AFNL



1. Quad Port Gigabit RJ45 POE/POE+

2. 4 Port Gbit POE/POE+ RJ45 PCB Jack

3. IEEE802.3af/IEEE802.3at

4. Current : 350mA to 720mA For Each Pair



LINK-PP Part Number LPJG46928AFNL
Application-Lan ETHERNET(PoE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/GREEN
Latch TAB DOWN
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.543
Package Height (mm) 13.80
Package Length (Inches) 0.831
Package Length (mm) 21.10
Package Width (Inches) 2.325
Package Width (mm) 59.06
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•Quality Guarantee:6 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



FAQ

Q:Are you a factory or a trading company?

A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.

Q:Can I get a free sample?

A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.

Q:How long is your delivery?

A:5-7 days in case of stock, normal is 2-3 weeks delivery

Q:What are your payment terms?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q:What are the ways you transport goods?

A:90% Off Shipping Cost By DHL UPS DEDEX Or TNT
