Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 93626-8520
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
93626-8520 |
Specification: |
LPJG4811CNL |
Apllication: |
10/100/1000Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
93626-8520 |
Specification: |
LPJG4811CNL |
Apllication: |
10/100/1000Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

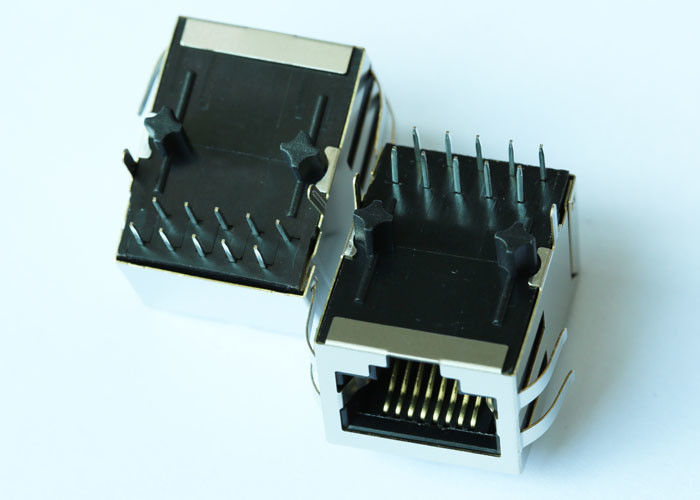

| Shielded 1x1 Port RJ45 Female Connector with 1000 Base-T Integrated Magnetics ,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG4811CNL |
| Part Number | 93626-8520 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | No |
| LED Option | without LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.524 |
| Package Height (mm) | 13.30 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.627 |
| Package Width (mm) | 15.93 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 BASE-T |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose LINK-PP
Quality
World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.
Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .
| Texas Instruments | INTEL | SAMSUNG | FLUKE | EKF | HUAWEI | IBM | CISCO |
| FLEXTRONICS | JABIL | Foxconn | CANON | Arduino | -- | --- | --- |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments
LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.
Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board
LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
Our Services:
20 Years Experience
Our company since 1997 RJ45 network connector production in th past 20 years,only focus on RJ45 network connector design and development and production and sales.
OEM Services
For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/MoneyGram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
What's the Refund&Replacement?
If there are any quality problems, please make sure all these items must be returned in their original condition to qualify for a refund or replacement. (Any used or damaged items can not be refunded or replaced).
