74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL

China 74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL supplier
74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL supplier 74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL supplier

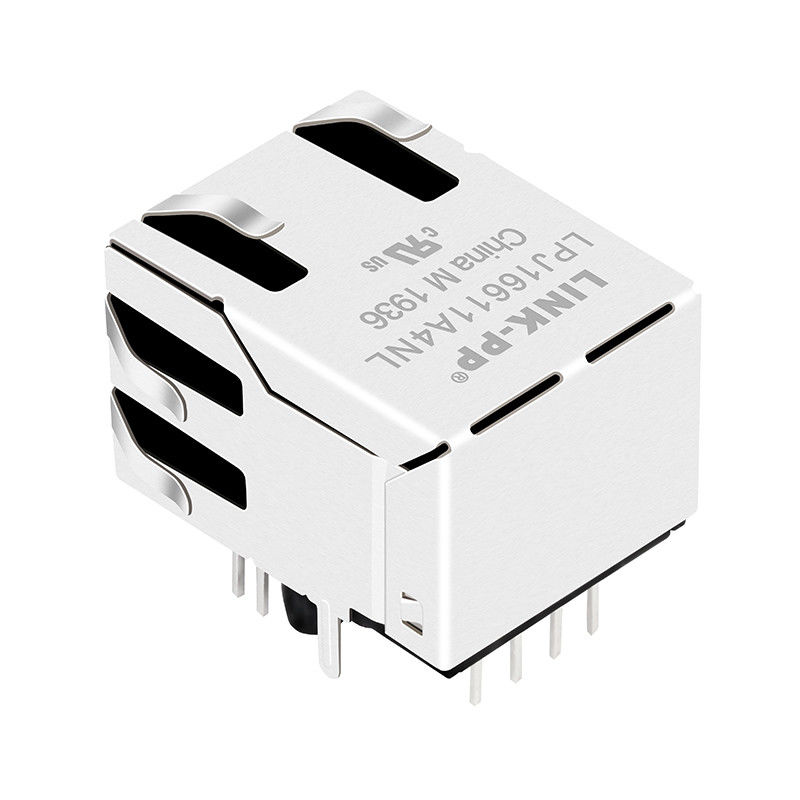

Large Image :  74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 74980104400

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 74980104400 Specification: LPJ16611A4NL
Apllication: 10/100 Base-T(x) Original Munafactuer: LINK-PP
Mail Customer: Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics File: PDF/3D/ISG/Stp/Step/Datasheet

74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL



Shielded 1x1 Ethernet Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics ,Green&Yellow/Green&Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJ16611A4NL
WE Part Number 74980104400
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.530
Package Height (mm) 13.45
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose LINK-PP



Quality



World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .



  • Manufactured under strict controls.
  • ISO 9001:2008
  • UL Certification
  • Reach Cetitifaction
  • RoHS compliance
  • OEM Of TE(Tyco) For 9 Years
  • Active Environmental policy
  • Every module tested (not just batch tested)
Main Customers




Texas Instruments INTEL SAMSUNG FLUKE EKF HUAWEI IBM CISCO
FLEXTRONICS JABIL Foxconn CANON Arduino  -- --- ---





LINK-PP RJ45  Designed for BeagleBone Black of Texas Instruments



LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on  BeagleBone Board

74980104400 Tab Up RJ45 Integrated 10 / 100M Magnetics With LED LPJ16611A4NL



                                LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti





What's the Price?

Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.

What's the Payment Method?

1. TT/LC/DP/DA/Paypal/Western Union/MoneyGram

2. The buyer is responsible for all the shipping cost incurred.

3. If you prefer to other payment terms, please contact us.

What's the Refund&Replacement?

If there are any quality problems, please make sure all these items must be returned in their original condition to qualify for a refund or replacement. (Any used or damaged items can not be refunded or replaced).

FAQ

Q: Are you trading company or manufacturer ?

A:We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight..

Q: What is your terms of payment ?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
