1-1734697-2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: 1-1734697-2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

multi port connector

,

dual rj45 jack

Designe PN#:
1-1734697-2
Made In China:
LPJEF102CNL
Interface:
10/100 Base-T, AutoMDIX
LED:
Without LED
Samples:
Supportive
File:
PDF/3D/ISG/Stp/Step/Datasheet
Designe PN#:
1-1734697-2
Made In China:
LPJEF102CNL
Interface:
10/100 Base-T, AutoMDIX
LED:
Without LED
Samples:
Supportive
File:
PDF/3D/ISG/Stp/Step/Datasheet

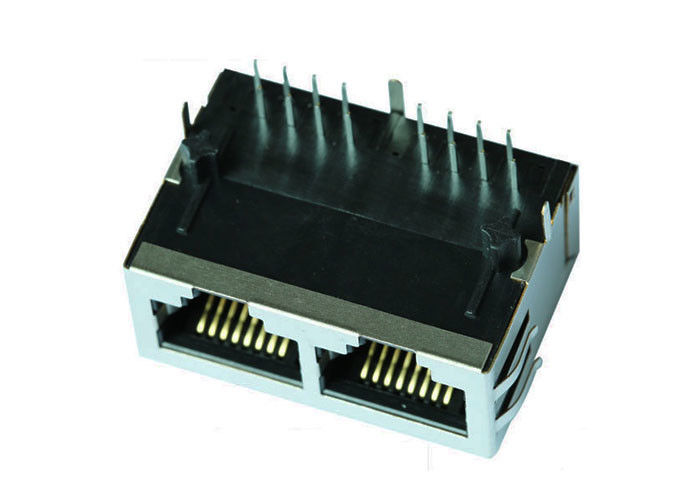

1-1734697-2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL
1-1734697-2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL



Shielded 1x2 Port RJ45 Magjack Connector without Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number LPJEF102CNL
Part Number 1-1734697-2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.537
Package Height (mm) 13.65
Package Length (Inches) 0.837
Package Length (mm) 21.27
Package Width (Inches) 1.225
Package Width (mm) 31.12
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed Without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



1-1734697-2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack LPJEF102CNL 0



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



FAQ

Q: Are you trading company or manufacturer ?

A:We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight..

Q: What is your terms of payment ?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
