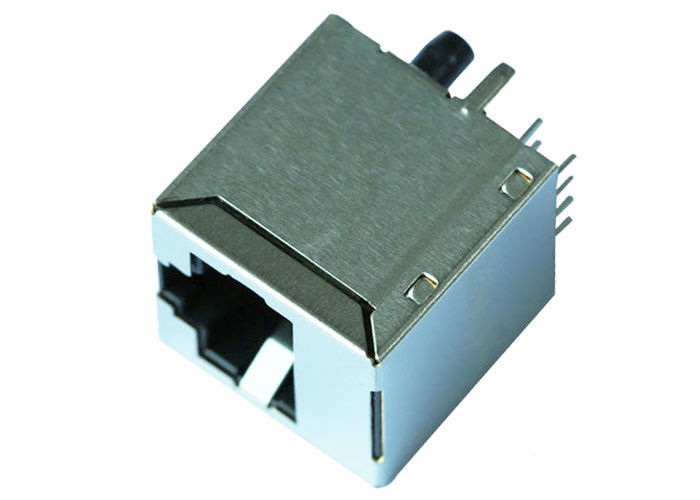

ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera

China ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera supplier
ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera supplier ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera supplier

Large Image :  ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJ11G-MBSC-MU2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200 PCS
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: ARJ11G-MBSC-MU2 P/N: LPJD0012DNL
Schematic: 1x 10/100Base-T Samples: Active&Available
File: PDF/3D/ISG/Stp/Step/Datasheet

ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera

Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Without LED,RoHS
LINK-PP Part Number LPJD0012DNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
  • Vertical RJ45 Jack
  • Meets Embedded control system
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJD0012DNL
  • 180 Degree With Step Ethernet rj45 connector
  • Specially for Point to Point Wireless Ethernet Bridge
  • Single port, Multi-port and Stackable configurations (Thru-hole)
  • Reduces the number of components to be placed on the board
  • Frees up board space and offers signal protection
  • Noise reduction in the Ethernet network analyzer system
  • Improved reliability and optimal system performance
  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
  • Helps manufacturers reach their goals of cost reduction

Characteristics


MJ0012DNL 180° Degree RJ45 Jack Female LPJD0012DNL For Network Camera
2)SMD,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics

Shielded
with/without
Termination Features

EMI Finger
with/without
Termination Method
Solder
Body  Features

LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features

Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards

Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage

Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features

Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
Datasheets
E-mail Inquiry to Summer@link-PP.com
Others Name
LPJD0012DNL
ARJ11G-MBSC-MU2 Vertical RJ45 Jack Female LPJD0012DNL For Network Camera

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: summer

Tel: +8618026686530

Send your inquiry directly to us (0 / 3000)
