85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL

China 85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL supplier
85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL supplier 85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL supplier

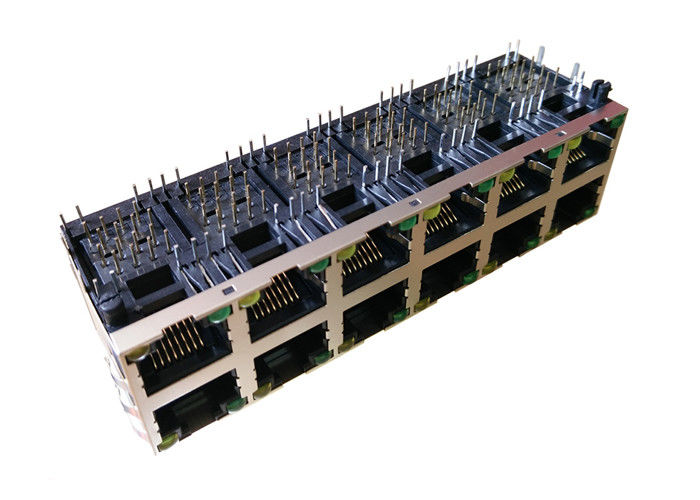

Large Image :  85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 85732-1006

Payment & Shipping Terms:

Minimum Order Quantity: 200/1000
Price: Supportive
Packaging Details: Tray&Carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: 85732-1006 I/O: 2x6 1000 Mbit Ethernet
Std: IEEE 802.3af Power Over Ethernet (PoE+) Signal: LED Indicators
Drawing: 3D Step IGS PDF Mounting: DIP On PCB
Gender: Female Socket Samples: Available

85732-1006 2X6 POE+ RJ45 Connector Magjack 1000Base-T With LED LPJG67045AENL



LINK-PP Part Number LPJG67045AENL
Application-Lan ETHERNET(POE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 9
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN/UP
Number of Ports 2X6
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 3.430
Package Length (mm) 87.12
Package Width (Inches) 1.517
Package Width (mm) 28.53
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications

  • Border Gateway Protocol
  • gateway protocol
  • Multimedia GateWay
  • dual-gateway server
  • Screened Host Gateway
  • Dual Homed Gateway
  • OSM fibre exchanger
  • wienet UMS switch
  • Industrial Ether Device Switch
  • Network type switch
  • Workgroup Switches
