Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJHSE-5085
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50PCS/tray;1200PCS/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000K/month
Specification: |
RJHSE-5085 |
Cross Part NO: |
LPJE101NNL |
Mounting: |
Thru-hole R/A |
Samples: |
Available 2-3 Pcs |
Latch: |
Tab Down |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
RJHSE-5085 |
Cross Part NO: |
LPJE101NNL |
Mounting: |
Thru-hole R/A |
Samples: |
Available 2-3 Pcs |
Latch: |
Tab Down |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

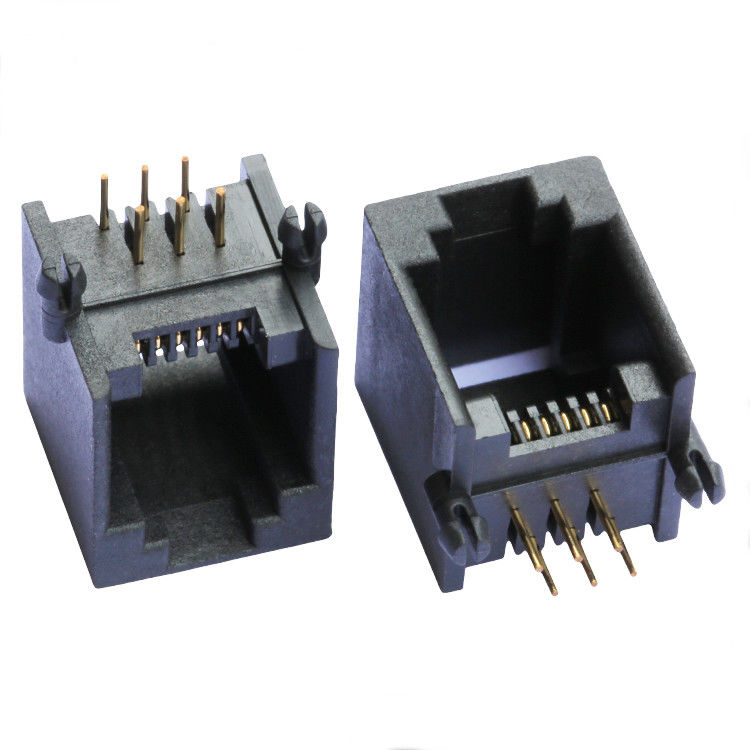

| Unshielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJE101NNL |
| Other Part Number | RJHSE-5085 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | without LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.494 |
| Package Height (mm) | 12.55 |
| Package Length (Inches) | 0.6599 |
| Package Length (mm) | 15.22 |
| Package Width (Inches) | 0.620 |
| Package Width (mm) | 15.76 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | RJ45 without magnetics |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
