Home > products > RJ45 Modular Jack > 950097881 1 Port Shielded 1x1 Port RJ45 Female Connector LPJE171-1NNL

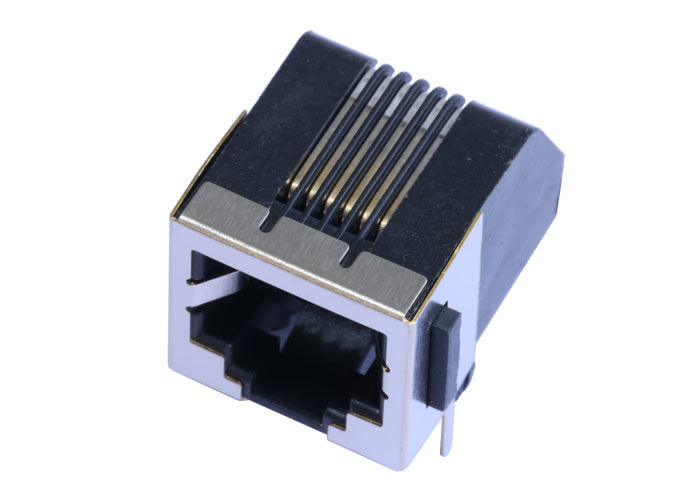

950097881 1 Port Shielded 1x1 Port RJ45 Female Connector LPJE171-1NNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 950097881

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Part Number:
950097881
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO +85
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
950097881
Connector Type:
RJ11
PIN Type:
THT Solder
Orientation:
90~ Angle (Right)
Temperature:
-40 TO +85
File:
PDF/3D/ISG/Stp/Step/Datasheet
950097881 1 Port Shielded 1x1 Port RJ45 Female Connector LPJE171-1NNL
950097881 1 Port Shielded 1x1 Port RJ45 Female Connector LPJE171-1NNL



Description



Shielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJE171-1NNL
Molex Part Number 950097881
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.594
Package Height (mm) 15.10
Package Length (Inches) 0.811
Package Length (mm) 20.60
Package Width (Inches) 0.600
Package Width (mm) 15.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed RJ45 without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
