HM1238NL / HM1238NLT BMS Transformer,500µH Pulse Transformer 1CT:1CT

China HM1238NL / HM1238NLT BMS Transformer,500µH Pulse Transformer 1CT:1CT supplier

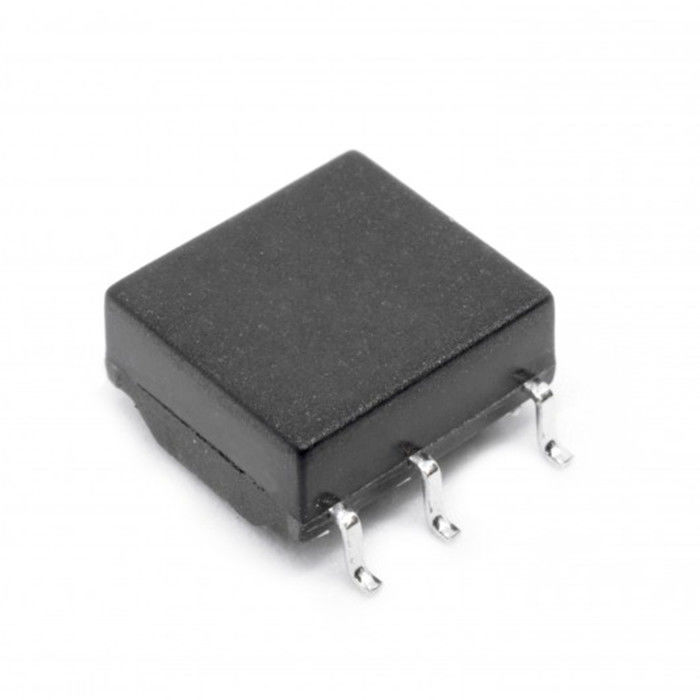

Large Image :  HM1238NL / HM1238NLT BMS Transformer,500µH Pulse Transformer 1CT:1CT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM1238NL / HM1238NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HM1238NL / HM1238NLT Port: Single
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HM1238NL / HM1238NLT BMS Transformer,500µH Pulse Transformer 1CT:1CT



BMS Transformer,1-Ch, 1000 V, +150°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM1238NL / HM1238NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer/Choke
Impedance Ohms Not Defined
Isolation Voltage 4300 VDC
Number of channels 1
Package SMT
Inductance 300µH
Rohs Compliant YES-RoHS-6
Temperature - 40℃ TO +150℃
Working Voltage 1000
Construction OPEN FRAME
Package Height (Inches) 0.167
Package Height (mm) 4.25
Package Length (Inches) 0.330
Package Length (mm) 8.38
Package Width (Inches) 0.413
Package Width (mm) 10.5
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
