HMU1228NL / HMU1228NLT Single Port BMS Transformer - 40℃ TO +125℃

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HMU1228NL / HMU1228NLT

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

smd transformer

,

surface mounting transformer

Specification:
HMU1228NL / HMU1228NLT
Mounting:
SMT
Samples:
Available
File:
PDF/3D/ISG/Stp/Step/Datasheet
Working Voltage:
1000
Isolation Voltage:
4300 VDC
Specification:
HMU1228NL / HMU1228NLT
Mounting:
SMT
Samples:
Available
File:
PDF/3D/ISG/Stp/Step/Datasheet
Working Voltage:
1000
Isolation Voltage:
4300 VDC

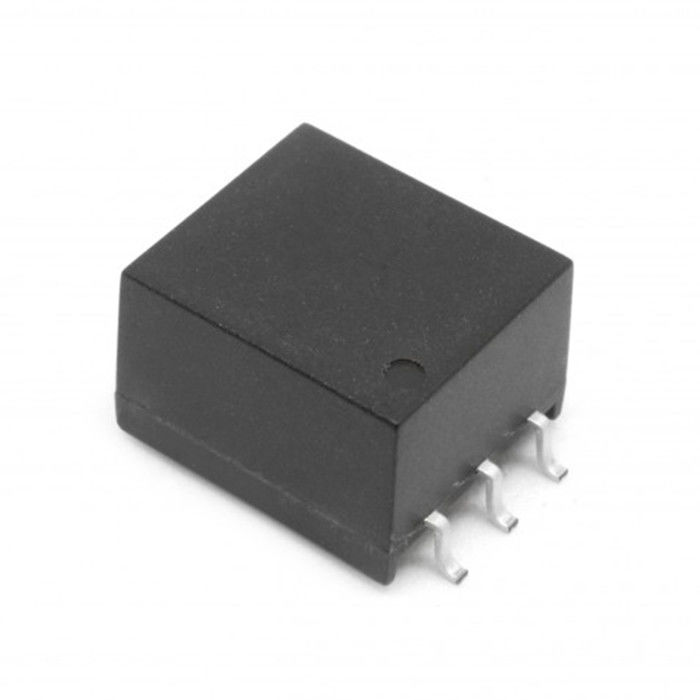

HMU1228NL / HMU1228NLT Single Port BMS Transformer - 40℃ TO +125℃
HMU1228NL / HMU1228NLT Single Port BMS Transformer - 40℃ TO +125℃



BMS Transformer,1-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HMU1228NL / HMU1228NLT
Part Status Active
Qualitication Per AEC-Q200
Application-Lan BMS Transformer
Construction Open Frame
Isolation Voltage 4300 VDC For 30 Seconds
Number of channels 1
Package SMT
Insulation Resistance 400 Megaohms Minimum
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 370µH Max
Rohs Compliant YES-RoHS-6
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.270
Package Height (mm) 6.85
Package Length (Inches) 0.35
Package Length (mm) 8.89
Package Width (Inches) 0.395
Package Width (mm) 10.03
Turns Ratio 1.00 + 2%
Polarity Per Schematic

HMU1228NL / HMU1228NLT Single Port BMS Transformer - 40℃ TO +125℃ 0

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board



Payment Terms : TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing : 10 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Lead Time : About 3~5 Days After Received Payment

SKU : 200

Standards Certificate : ISO 9001,ISO 14001,UL,SGS,REACH168





FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer

2. No MOQ demand.

3. Good quality, competitive price with best service.

4. Available for ODM/OEM order.
