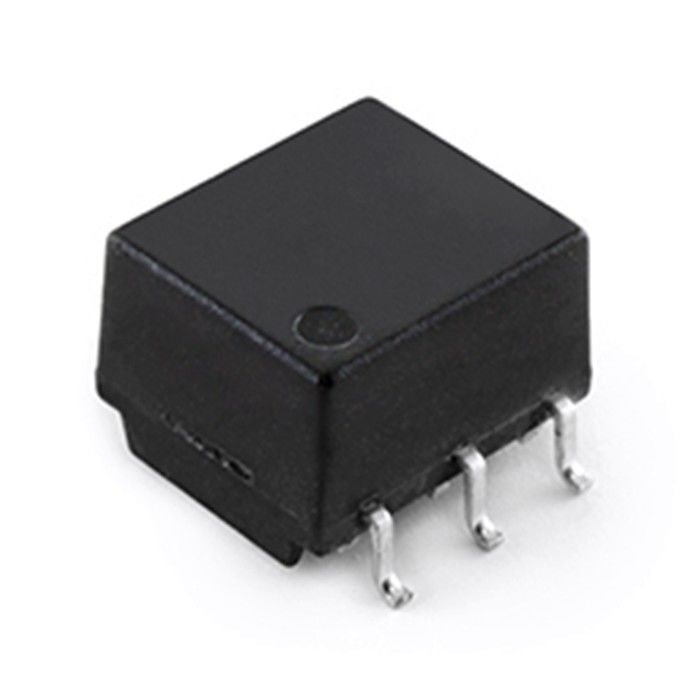

HMU2103NL / HMU2103NLT 1 Port BMS Transformer Modules SMT

China HMU2103NL / HMU2103NLT 1 Port BMS Transformer Modules SMT supplier

Large Image :  HMU2103NL / HMU2103NLT 1 Port BMS Transformer Modules SMT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HMU2103NL / HMU2103NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HMU2103NL / HMU2103NLT Port: Single
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT



BMS Transformer,2-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HMU2102NL / HMU2102NLT
Part Status Active
Qualitication Per AEC-Q200
Application-Lan BMS Transformer/Choke
Construction Open Frame
Isolation Voltage 4300 VDC For 30 Seconds
Number of channels 2
Package SMT
Insulation Resistance 400 Megaohms Minimum
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 370µH Max
Rohs Compliant YES-RoHS-6
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.192
Package Height (mm) 4.88
Package Length (Inches) 0.583
Package Length (mm) 14.81
Package Width (Inches) 0.579
Package Width (mm) 14.7
Turns Ratio 1.00 + 2%
Polarity Per Schematic



Lan Transformer Modules

Wired LANs need pulse transformers for the transmission of rectangular pulses. Like conventional transformers, pulse transformers consist of a core with a primary and a secondary winding. The galvanic separation serves to protect sensitive ICs and networked devices from DC bias on the line.

Because they must transmit pulse waves that contain many different frequency components resulting from the Fourier transform, their cores must feature low losses and prevent pulse waveform distortions across a wide frequency range. To meet these demands, LINK-PP has developed of LAN pulse transformers using high-performance.

In order to suppress the intrusion or outflow of common-mode noise, LAN pulse transformers are normally combined with common-mode chokes to form a pulse transformer module.

This module, in turn, is embedded in the RJ-45 connector to form a connector module (Figure 1). Thus, for use in standard RJ-45 connectors, LAN pulse transformers must also be very compact.
