Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

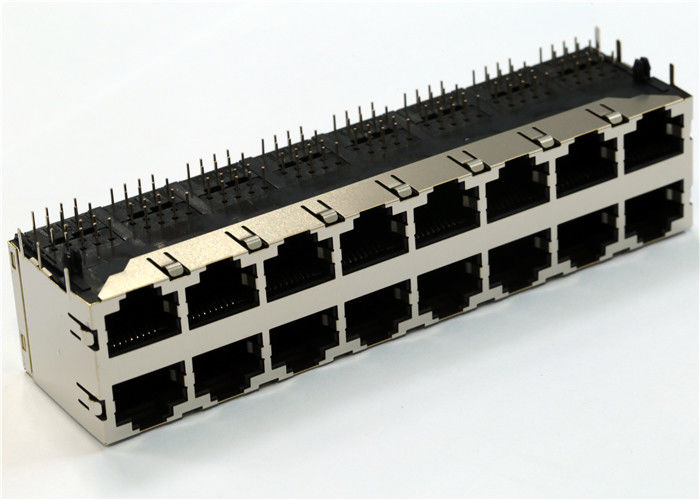

Model Number: J20-0116NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Item No: |
J20-0116NL |
Conn: |
Rj45 Female |
Port: |
2x8 |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Orientation: |
Through Hole |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Item No: |
J20-0116NL |
Conn: |
Rj45 Female |
Port: |
2x8 |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Orientation: |
Through Hole |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| CONTACT MATING AREA PLATING | GOLD 30 U'' |
| LATCH | BOTH |
| LED OPTION | GREEN/YELLOW & GREEN/YELLOW |
| NUMBER OF PORTS | 2X8 |
| PACKAGE | THT |
| PACKAGE HEIGHT MM | 25.520 |
| PACKAGE LENGTH MM | 31.400 |
| PACKAGE WIDTH MM | 115.320 |
| PCB MOUNT ANGLE | SIDE ENTRY |
| POE RATING | NON-POE |
| ROHS COMPLIANT | YES-RoHS-6 |
| SPEED | 100BASE-TX |
| TEMPERATURE | 0 TO 70 |
| TURNS RATIO | 1:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
• Delivery Time:2-3 Weeks After Orders
Professional Certification
RJ45 Connector Definition
RJ45 is usually defined by IEC (60) 603-7, using 8 positions (8-pin) modular jacks or plugs defined by international connector standards, so RJ45 interface is also known as 8j crystal head or crystal. Head, crystal head is male.
The RJ45 network interface is widely used in the connection between network devices (called Category 5 or twisted pair) between LAN devices and ADSL broadband Internet users.
And RJ45 socket, RJ45 connector, RJ45 network interface, RJ45 female, network connector. That is, the company's products refer to the female base in the RJ45 connector, mainly used in Ethernet network cards, routers, switches, set-top boxes, security cameras and other equipment.
