Home > products > Magnetic RJ45 Jack > ARJM11C7-805-AB-CW4 2.5G Base-t Female 1X1 RJ45 Cable Connector Jack

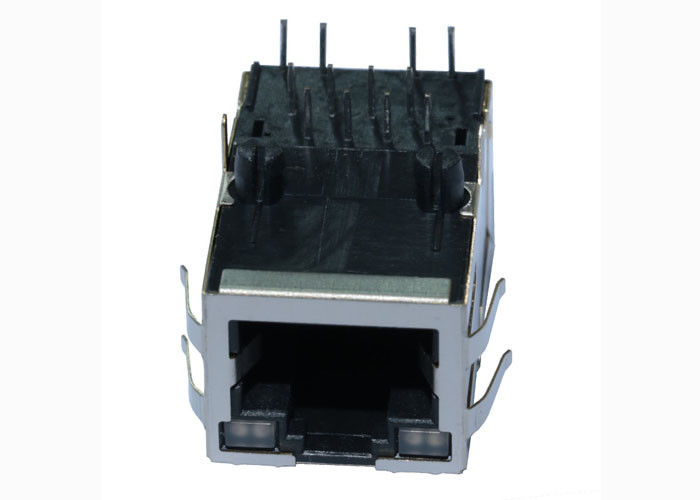

ARJM11C7-805-AB-CW4 2.5G Base-t Female 1X1 RJ45 Cable Connector Jack

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11C7-805-AB-CW4

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Specifications:
ARJM11C7-805-AB-CW4
P/N:
LPJxxxxNL
Schematic:
8 Coils, 1CT:1CT,1CT:1CT
LEDs:
Green/Yellow LEDs
Samples:
Available
File:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
ARJM11C7-805-AB-CW4
P/N:
LPJxxxxNL
Schematic:
8 Coils, 1CT:1CT,1CT:1CT
LEDs:
Green/Yellow LEDs
Samples:
Available
File:
PDF/3D/ISG/Stp/Step/Datasheet
ARJM11C7-805-AB-CW4 2.5G Base-t Female 1X1 RJ45 Cable Connector Jack
ARJM11C7-805-AB-CW4 2.5G Base-t Female 1X1 RJ45 Cable Connector Jack

Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)



ARJM11C7-805-AB-CW4 2.5G Base-t Female 1X1 RJ45 Cable Connector Jack 0


Product Warranty



1. Guarantees 100% compliance CE,Rohs

2. Lenth:Custom.

3. Molded-strain relief construction for flexible movement, durability, and fit.

4. Reduces cross talk and interference with aluminum undermold contacts



Packaging & Shipping



1. any items want to order. Please contact us. And confirm the order details and lead time.

2. Terms of Shipment:

Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.

3. Shipping Companies: We support shipment by "HK post" "China post" "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF"”, if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help

4.Packing could be PE bag or Blister Card, depend on what product you ordered



Our Services



1. OEM/EDM service

2. Fast delivery

3. Most of the payment are accepted

4. Design and produce goods according to clinet's requirement.


Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
