Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 101901MH016SA41ZL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP1198NL |
Speed: |
10/100 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet |
PIN Number: |
16 |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LP1198NL |
Speed: |
10/100 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet |
PIN Number: |
16 |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3.Type:SMT
4. Coil Structure: Toroidal
10/100 base-t single Ports Ethernet Pulse Transformer For Hub , Pc Card
Description:

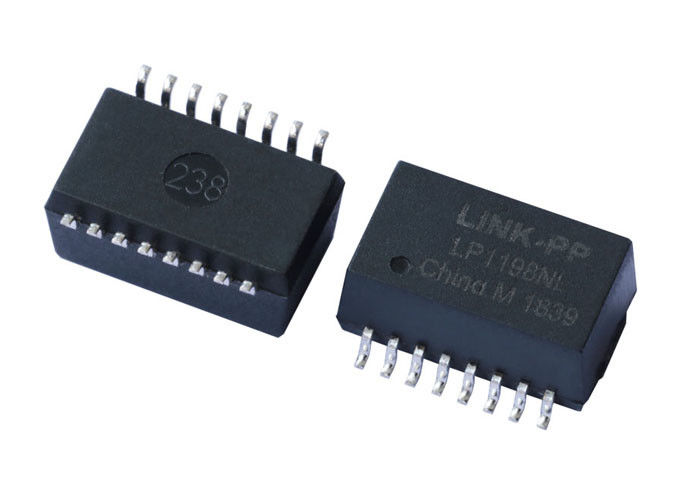

LP1198NL Single Ports Discrete Transformer , Autotransformer 101901MH016SA41ZL
|
Application |
LAN ETHERNET(PoE&NON PoE) |
|
AutomDX |
YES |
|
Comment |
RoHS Compliant LP1198NL |
|
Configuration RX |
T,C |
|
Configuration TX |
T,C |
|
Construction |
TRANSFER MOLD |
|
Cores Per Port |
4 |
|
Number of Ports |
1 |
|
PCB |
NO PCB |
|
Package |
SMT |
|
Package Height (Inches) |
0.225 or other |
|
Package Height (mm) |
5.715 or other |
|
Package Length (Inches) |
1.12 or other |
|
Package Length (mm) |
28.448 or other |
|
Package Width (Inches) |
0.63 or other |
|
Package Width (mm) |
16.002 or other |
|
RoHS Compliant |
YES-RoHS-6 |
|
Speed |
10/100BASE-TX |
|
Temperature |
0 TO 70/-40 To +85 |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
|
Main P/N |
LP1198NL, etc |
Electrical Specifications (25):
Electrical Specification @25℃
1.OCL: 350uH Min
@100KHz,0.2V,With 8mA DC BIAS
2.Turns Ratio(%%P5%):
TX=1CT:1CT RX=1CT:1CT
3.Insertion Loss:
0.3-100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.3-30MHz:-18 40MHz:-16
50MHz:-14.5 60-80MHz:-12
5.Crosstalk(dB Min):
0.3-60MHz:-42 60-100MHz:-35
6.Common Mode Rejection(dB Min):
0.3-30MHz:-40 60MHz:-35
80-100MHz:-30
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃～+85℃.
NOTES
1.Designed to support application, such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 260℃.
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
