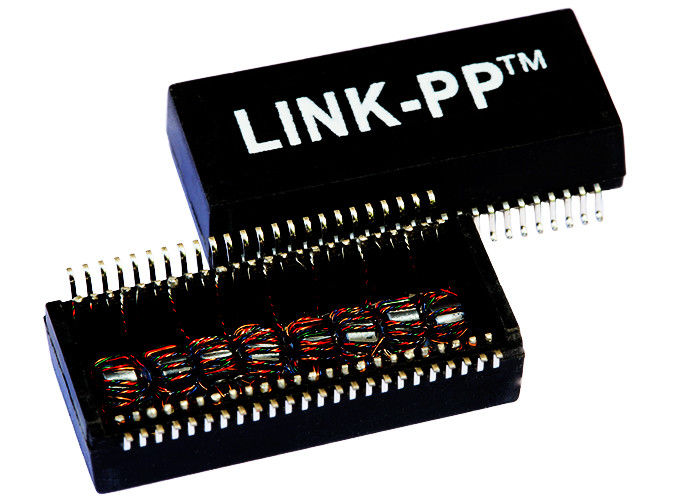

H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module

Name: H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
Brand: LINK-PP
SKU: H1060NL
Price: 0.06 USD
Availability: InStock
Rating: 5 (184 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1060NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                smd transformer, surface mounting transformer


Specifications:	H1060NL	Compatible:	LP1060NL
Ethernet:	4x10/100Base-T	Samples:	Free
Application:	ETHERNET (NON PoE)	Turns Ratio RX:	1CT:1CT
Turns Ratio TX:	1CT:1CT	Cores Per Port:	16
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Specifications:	H1060NL
Compatible:	LP1060NL
Ethernet:	4x10/100Base-T
Samples:	Free
Application:	ETHERNET (NON PoE)
Turns Ratio RX:	1CT:1CT
Turns Ratio TX:	1CT:1CT
Cores Per Port:	16
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module

H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module

1x4 Port Lan Transformer Meets IEEE 802.3 specification
RoHS peak reflow temperature rating: 245°C
Models designed to support four single or double-stacked RJ-45 connectors
100base-t transformer Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio
10/100Base-TX Quad Port Transformer Modules
LP1062ANLE Industrial Model

Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time

LP1260NLE
H1302NLT
LP1302NL
LP1011NLE

LP1062ANLE
