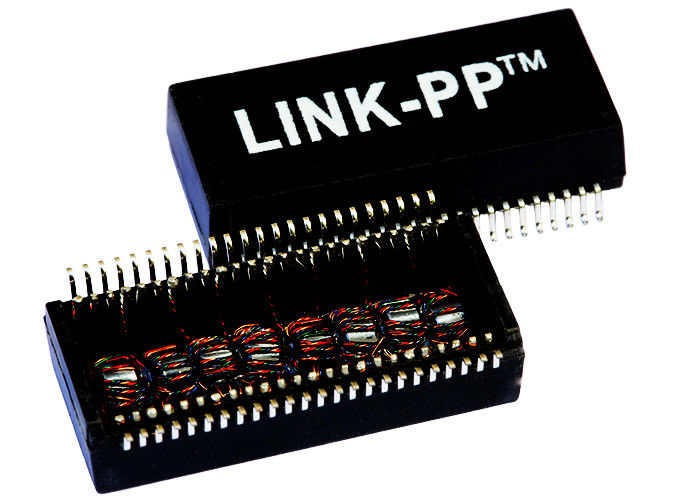

H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1164NL / H1164 / H1164NLT

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

gigabit magnetics transformer

,

ethernet transformer

Model No:
H1164NL / H1164 / H1164NLT
Transformer Type:
10/100 Mbps 4 Ports
Turns Ratio:
1:1
Mounting Type:
SMT / SMD
Height - Seated (Max):
5.72 Mm
Size / Dimension:
28.45 Mm X16.00 Mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Model No:
H1164NL / H1164 / H1164NLT
Transformer Type:
10/100 Mbps 4 Ports
Turns Ratio:
1:1
Mounting Type:
SMT / SMD
Height - Seated (Max):
5.72 Mm
Size / Dimension:
28.45 Mm X16.00 Mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
H1164NL Ethernet Transformer Modules H1164 , Quad Port H1164NLT 10/100Base-TX

H1164NL Ethernet Transformer Module H1164 , Quad Port H1164NLT 10/100Base-TX


H1164NL / H1164NLT 1:1 TransformerQuad Transformer10/100 Base-T SMT


Key Description:



H1164NL / H1164NLT 10/100BASE-TX TRANSFORMER MODULES For Auto MDI/MDIX Applications

RoHS peak reflow temperature rating 245°C
Symmetrical transmit and recieve channels for Auto
MDI/MDIX capability
Approved for use with the Broadcom BCM5226
and Level One LXT9784
Meets IEEE 802.3 specification



Competitive Advantage

☛ Designer and Manufacturer for 18 years.

☛ 2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.


Number of portsApplicationsTurns RatioPower Over Ethernet
 Quad Port10/100Base-T1:1--



PackagingTab DirectionMounting TypeContact Finish
Reel , Carton--SMT/SMD--



Pins NumberShieldingIsolation VoltageLED Color
40 Pins--1500 Vrms---
