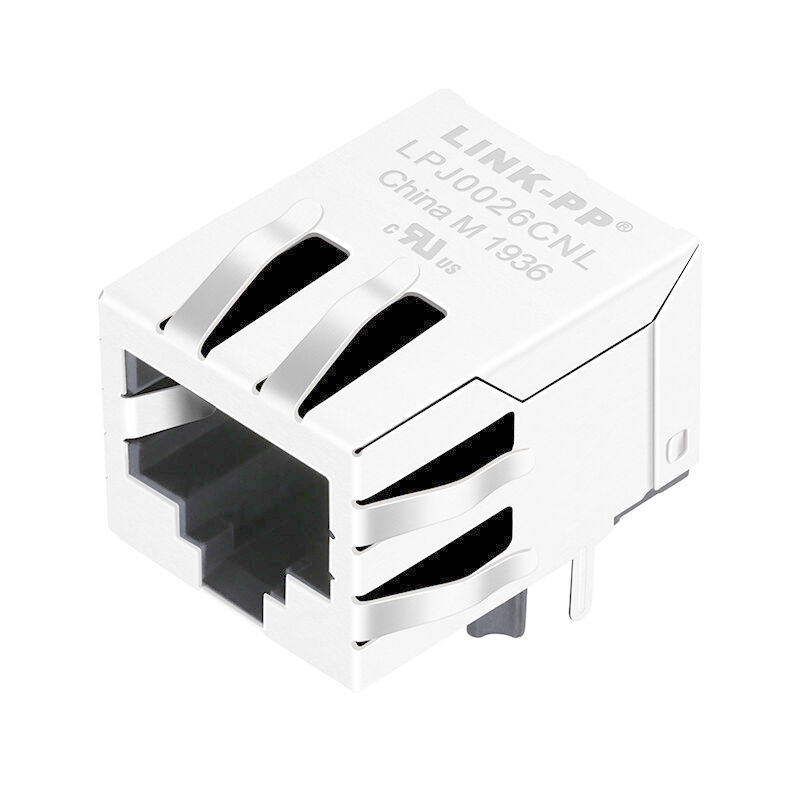

212A-11CA0-R | LPJ0026CNL Magnetic Connector rj45 10/100Base-T

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 212A-11XA0-R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Specifications:
212A-11XA0-R
P-N:
LPJ0026CNL
TAB Direction:
Down
RoHS Compliant:
Yes
Indicator:
Without
Samples:
Free
Specifications:
212A-11XA0-R
P-N:
LPJ0026CNL
TAB Direction:
Down
RoHS Compliant:
Yes
Indicator:
Without
Samples:
Free
212A-11CA0-R | LPJ0026CNL Magnetic Connector rj45 10/100Base-T
212A-11CA0-R | LPJ0026CNL Magnetic Connector rj45 10/100Base-T

  • 10/100BASE
  • 1X1 Tab-DOWN
  • RJ45 modular jack
  • 212A-11AA0-R
  • 212A-11CA0-R
  • 212A-11EA0-R
  • 212A-11GA0-R



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT 212A-11CA0-R | LPJ0026CNL Magnetic Connector rj45 10/100Base-T 0
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃. / -40℃ TO 85℃.
