Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specifications:	P62-PB1-3AG9	P.N:	LPJ1015-1AHNL
TAB Direction:	UP	Speed:	10/100 Auto
LED:	With	Samples:	Free

Specifications:	P62-PB1-3AG9
P.N:	LPJ1015-1AHNL
TAB Direction:	UP
Speed:	10/100 Auto
LED:	With
Samples:	Free

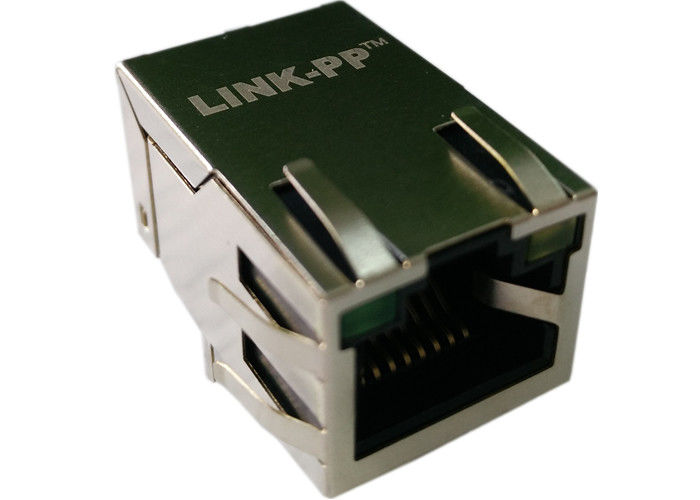

Standard POE Magjack RJ45 Jack P62-PB1-3AG9 | LPJ1015-1AHNL

Standard POE Magjack RJ45 Jack P62-PB1-3AG9 | LPJ1015-1AHNL

10/100 Base-T

1X1 Tab-up

Through hole RJ45 modular jack

25.4mm length RJ45 Magjack

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3af

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
