LPJ2001CNL Magnetic RJ45 Jack , P36@P08-17D9-A Ethernet Connector 10Base

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: P36@P08-17D9-A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Specifications:
P36@P08-17D9-A
P-N:
LPJ2001CNL
Ethernet:
1x 10Base
RoHS Compliant:
Yes
Indicator:
None LEDs
Samples:
Free
Specifications:
P36@P08-17D9-A
P-N:
LPJ2001CNL
Ethernet:
1x 10Base
RoHS Compliant:
Yes
Indicator:
None LEDs
Samples:
Free

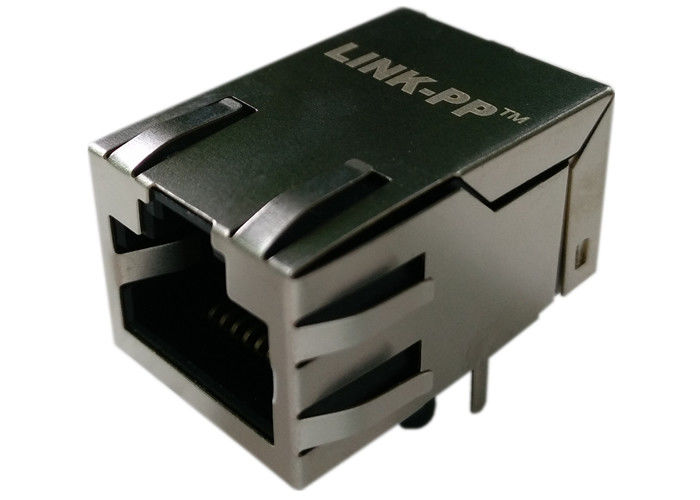

LPJ2001CNL Magnetic RJ45 Jack , P36@P08-17D9-A Ethernet Connector 10Base
LPJ2001CNL Magnetic RJ45 Jack , P36@P08-17D9-A Ethernet Connector 10Base

1.10/100 Base-T P36@P08-17D9-A
2.1X1 Tab-up LPJ2001CNL
3.Through hole RJ45 modular jack
4.25.4mm length RJ45 Magjack

Description:

1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
