                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Specifications:	P26-P51-2EL9	P-N:	LPJ16219BENL
TAB Direction:	UP	RoHS Compliant:	Yes
Mounting:	THT PCB	Samples:	Available

Specifications:	P26-P51-2EL9
P-N:	LPJ16219BENL
TAB Direction:	UP
RoHS Compliant:	Yes
Mounting:	THT PCB
Samples:	Available

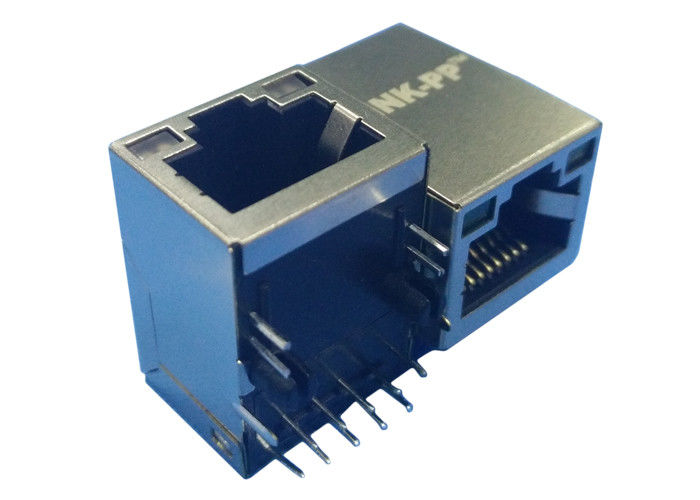

P26-P51-2EL9 | LPJ16219BENL 100Base Transformer Magnetic RJ45 Jack

P26-P51-2EL9 | LPJ16219BENL 100Base Transformer Magnetic RJ45 Jack

1. Quick Details

Speed:	100BASE-T
Number of Ports:	1x1 PORT
Application - LAN:	ETHERNET (WITHOUT PoE)
Latch:	UP
Pin Type:	THT SOLDER
Temperature:	0 TO 70

2.Magnetic RJ45 Jack Description:

Listing Description:
	1) manufacture RJ45 Magnetic Jack for 16years Experience
	1)ISO9001 SGS UL CE REACH Certification
	3)Main customer:TI GE SONY Samsung IBM CANON
	4)PULSE OEM for 9years
Detailed Description:

1.Characteristics:	1)RJ45 Connector with integrated transformer/common mode choke
	2)Available in SMD, THT and THT with USB
	3)350µH min. OCL with 8mA bias
	4)Complies with IEEE 802.3
	5)Extended temperature range -40°C to +85°C available


2. Operation/Application:	1)10 / 100 / 1000 Base-T
	2)xDSL Modems
	3)Embedded PC
	4)LAN Applications
	5)Hub, Router, Switches
3. Mechanical Attachment:
1) Jack Configuration
3. Electrical Characteristics:
1) Shielded	Yes
4. Termination Related Features:
1) EMI Finger	Yes
2) Termination Method	Solder
5. Body Related Features:
1) Port Configuration	Single
2) EMI Fingers -Top and Sides	With/Without
3) Latch Orientation	Standard - Latch Down
4) PCB Tail Length	3.50±0.50mm
6. Contact Related Features:
1) Preloaded	Yes
2) Contact Termination Type	Through Hole
7. Housing Related Features:
1) Connector Style	Jack
8. Industry Standards:
1) RoHS/ELV Compliance	RoHS compliant, ELV compliant
2) Lead Free Solder Processes	Wave solder capable to 265°C
3) RoHS/ELV Compliance History	Always was RoHS compliant
9. Identification Marking:
1) Left LED Color	Green or Yellow
2) Right LED Color	Green or Yellow
10. Conditions for Usage:
1) Applies To	Printed Circuit Board
2) Environmental Conditions	Office / Premises
3) Operating Temperature (°C )	0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit	3D15
2) Status Indicator	Led
3) Decoupling Capacitor	With/Without
4) Rear PCB Ground Tab	With/Without
5) Signal Lead Quantity	8
