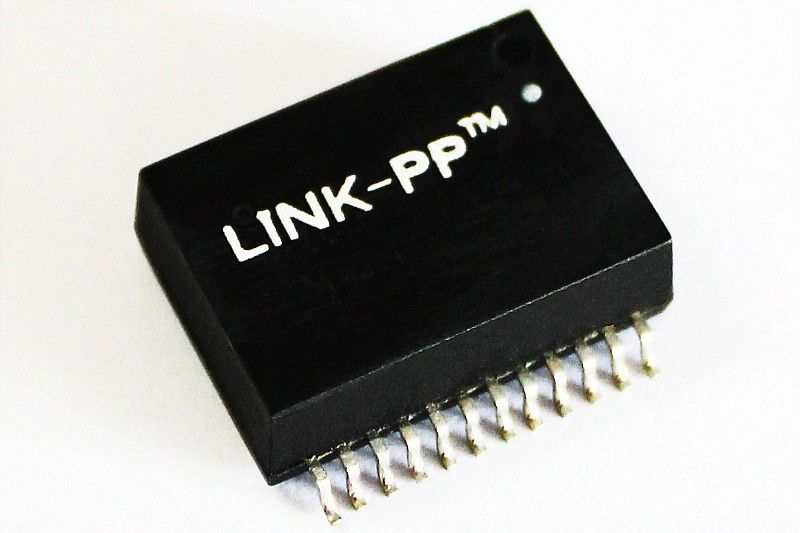

Toroidal Coli Structure Gigabit POE Ethernet Magnetic Transformer HST-24030SXR

China Toroidal Coli Structure Gigabit POE Ethernet Magnetic Transformer HST-24030SXR supplier

Large Image :  Toroidal Coli Structure Gigabit POE Ethernet Magnetic Transformer HST-24030SXR

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HST-24030SXR

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description



Lan Transformer , Gigabit POE Ethernet Magnetic Transformer





Quick Detail


1.Single Port Lan Transformer

2.ColiStructure: Toroidal

3.1000base-t transformer

4.SMD, 24 pins


10 / 100 / 1000BASE-TX Single Port Lan Transformer With 24 Pins




Description:



Single Port Gigabit POE ETHERNET MAGNETIC TRANSFORMERS

Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPXXXXNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP1102NL, etc



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min





Applications:



Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time



Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: Amanda.y@link-pp.com

Tel: +8618665915096

Send your inquiry directly to us (0 / 3000)
