Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

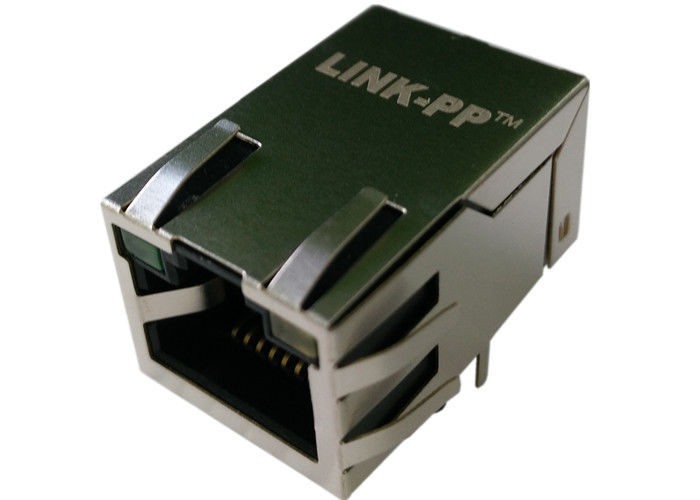

Model Number: AR11-3720I
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
PN#: |
AR11-3720I |
Made In China: |
SM-LPJ6014AHNL |
TAB Direction: |
UP |
Interface: |
10/100Mbps |
LED Indicator: |
LED Colors Can Be Selected |
Samples: |
Free Available |
PN#: |
AR11-3720I |
Made In China: |
SM-LPJ6014AHNL |
TAB Direction: |
UP |
Interface: |
10/100Mbps |
LED Indicator: |
LED Colors Can Be Selected |
Samples: |
Free Available |
TEST NOTES(25±5℃)
1.TR:(100KHZ,100mV);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.LX:(100KHZ,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500V
PINS(P4,P5,P6)TO (J3,J6)=1500V
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: -40℃～+85℃.
