Home ProductsLow-Profile RJ45 Jack

Signle Port Low-Profile RJ45 Jack , Female Shielded RJ45 Connectors

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

Signle Port Low-Profile RJ45 Jack , Female Shielded RJ45 Connectors

China Signle Port  Low-Profile RJ45 Jack , Female Shielded RJ45 Connectors supplier

Large Image :  Signle Port Low-Profile RJ45 Jack , Female Shielded RJ45 Connectors

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJK7001AONL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
PN: LPJK7001AONL TAB Direction: UP
RoHS Compliant: YES Ethernet: 10/100 Base-T
Sample: Available File: PDF/3D/ISG/Stp/Step/Datasheet

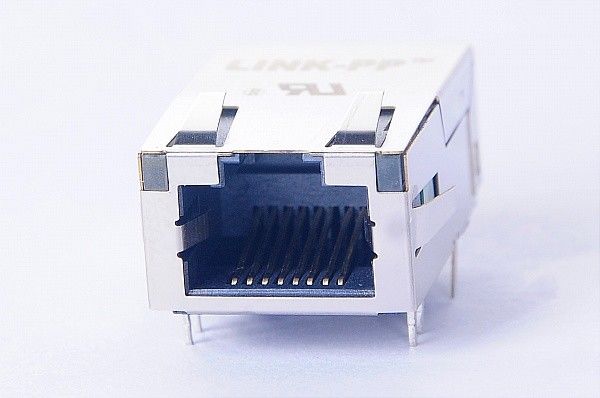

Signle Port  Low-Profile RJ45 Jack , Female Shielded RJ45 Connectors



Single Port Low Profile RJ45 Connector with 10/100 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part NumberLPJK7001AONL
Application-LanETHERNET(NoN PoE)
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port4
DiodesNO DIODES
LED OptionORANGE&GRREN/YELLOW
LatchTAB UP
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Package Height (mm) 11.30
Package Length (mm) 24.04
Package Width (mm) 16.85
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed10/100 BASE-T
Temperature0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Description:
1X1 Tab-up 10/100/1000M low profile RJ45 connector with dimension 16.85X24.13X11.30mm,  without leds.
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85


Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
