Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJ46514AENL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Hi-pot: |
1500V |
Application: |
PCB |
LED: |
With Or Without |
Phase: |
Single |
Type: |
RJ45 |
Port: |
1x4 |
Gender: |
Female |
PN: |
LPJ46514AENL |
Hi-pot: |
1500V |
Application: |
PCB |
LED: |
With Or Without |
Phase: |
Single |
Type: |
RJ45 |
Port: |
1x4 |
Gender: |
Female |
PN: |
LPJ46514AENL |

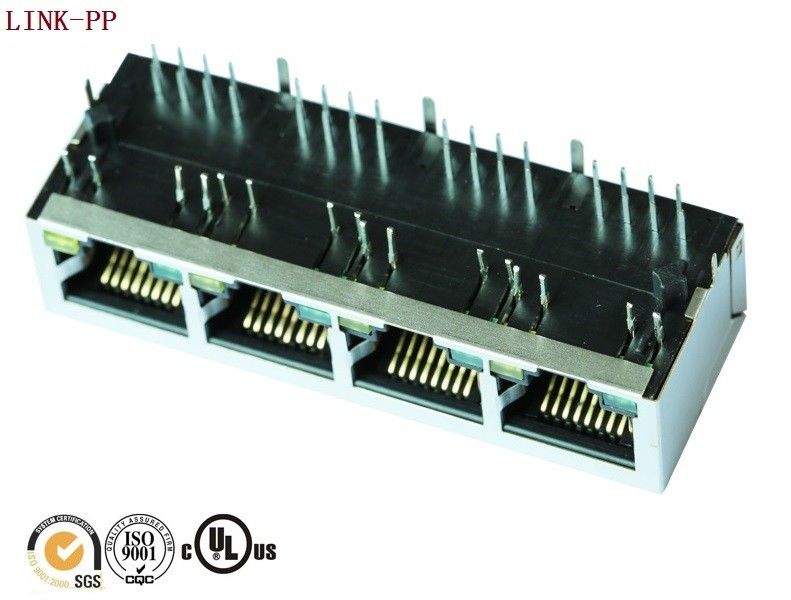

| 1X4 RJ45 Female Connector with 10/100 Base-T Integrated Magnetics & PoE,Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ46514AENL |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.533 |
| Package Height (mm) | 13.55 |
| Package Length (Inches) | 0.831 |
| Package Length (mm) | 21.10 |
| Package Width (Inches) | 2.328 |
| Package Width (mm) | 59.12 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
|
We Can Also Cross These Part Number Below
|
|
|
LPJ46514AENL
|
XPH-RMP-061L-16W6-2Y
|
|
XMP-P25-10F0-GY-CT1
|
XMH-01-5-PL2-111-1P0
|
|
XMP-01-4-P25-111-1P0
|
XMG-01-4-P23-111-1P0
|
|
XMP-P31FAT-10F0-NL
|
XMP-01-4-P25-111-1P0
|
|
XMH-T02-041-423-012
|
XPJG-1-01K-5-PN1-210
|
|
XMP-9808-81011-140D-T3
|
XPJG-1-01A-4-D51-310
|
|
XMH-9771-8812-S3L2T2-EU
|
XPJG-1-01A-4-D51-110
|
|
XMP-XARJ-1032NL
|
XPJG-1-01-8A-G31-1-PD31
|
|
XMPH-TRJK0013AHNL-GE1
|
XPJG-01J-1-P31-110
|
|
XMPH-TRJK2001AHNL
|
XMH-PD2F-10H0-GY
|
|
XMPH-061Q-12F6-GY(RMP-061Q-12F6-GY)
|
XPJH-RMP-061L-10W6-NL
|
|
XMPH-01D-1-D25-110
|
XMP-RMP-LC4P-16F6-NL
|
|
XMPH-01R-4-Q23-170
|
XPH-RMP-061L-16W6-2Y
|
|
XMPH-XARJ-8017CNL
|
XPJH-RMP-061K-16W6-NL
|
|
XMPH-SC851-901NL
|
XMG-TRJ4190GENL
|
|
XMP-TRJK0010AGNL
|
XMH-TRJ6100AGNL-SG1
|
|
XMH-TRJ16003AZNL
|
XPJH-01D-1-D25-110(XMH-01-1-PP1-111-1P0)
|
|
XMH-TRJ1514AENL
|
XMP-01M-0-H61-11P
|
|
XMP-TRJ16249AZNL
|
XMP-01D-4-L61-11P
|
|
XMPH-TRJK4013AHNL
|
XMP-01J-1-P12-C01
|
|
XMP-061K-16W6-2Y-M
|
XPJH-1-01-8C-E3M-4-PD11
|
|
XMP-01J-1-P12-T01
|
XPJH-01D-4-PG1-170-DAQ
|
|
XMP-9774-TF91121-006-CX1
|
XPJH-01D-4-P23-170-DAQ-C
|
|
XMP-1104D6014
|
XPJH-01D-4-P23-170-DAQ
|
|
XMP-TRJK1046AONL
|
XPJH-01D-0-PH1-070
|
|
HRJ-YL1B11M2000BNL
|
XPJH-01F-4-P25-176
|
|
XPJH-01L-4-R07-170
|
XPJH-01F-5-PN1-170
|
|
XPJH-01R-0-Q22-07C-OAS
|
XPJH-01R-0-PJ1-07K-BRD
|
|
XPJH-01R-0-R09-070
|
XPJH-RN6-1640F51F
|
|
XPJH-061LAT-10W6-NL
|
XMH-YL5917222X6PLE
|
|
XPJH-01R-0-F02-070
|
XPJH-1-26-8A-S4C-0-PD01
|
|
XPJH-061KAT-16W6-NL
|
XPJH-28A-Z-P01-970
|
|
XPJH-01R-4-D11-171
|
XPJH-28D-0-H65-070
|
|
XPJH-1-01-8A-C41-4-PE11
|
XPJH-28D-0-H01-01
|
|
XPJG-01J-4-P25-110
|
XPJH-2-28-8C-T4D-0-PH01
|
|
XPJG-01J-1-P28-110
|
XMH-YL5917122X1LE
|
|
XPJG-01J-4-PH2-110
|
XMH-YL5917212X1LE
|
|
XPJG-01K-5-PN1-210
|
XPJH-21D-Z-P21-970-MHF
|
|
XPJG-01A-4-D51-310
|
XPJH-1-21-8A-Q30-Z-PD21
|
|
XPJG-01A-4-D51-110
|
XPJH-TRJ17002A109NL
|
|
XPJG-1-01-8A-G31-1-PD31
|
XPJH-1-21-8A-Q30-4-PD22
|
|
XMG-TRJ26514AENL
|
XMH-9760-DH3B120-286
|
|
XPJH-1208C1009
|
XPJH-24A-Z-P01-970
|
|
XPG-SK02-411008POENL
|
XMH-YL5917222X4PLE
|
|
XPJG-1-04-8A-G34-4-PD23
|
XPJH-24D-Z-P21-970-MHF
|
|
XPJH-04L-8-R08-4V0
|
XMH-9760-DH3D120-286
|
|
XPJH-04L-8-R08-4V0-JU
|
XPJH-26A-Z-P01-970
|
|
XPJH-04L-5-R10-1S0
|
XMH-9760-DH3G130-286
|
|
XPJH-04D-1-D34-190
|
XPH-TRJ46253AENL
|
|
POE RJ45 Connector Available Of LINK-PP
|
|
|
Type PCB Mount
|
Thru-Hole (THT)
|
|
Number of Ports
|
1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
|
|
Shield and Unshield
|
Available in Shield and Unshield
|
|
Connector Type
|
RJ45
|
|
PoE
|
Power Over Ethernet Integrated
|
|
Magnetics
|
Magnetic Integrated
|
|
Magnetics Speed
|
Magnetics 10/100Mbps and 1000Mbps
|
|
Packaging
|
Tray Options
|
|
Tab Location
|
Tab Up and Tab Down Options
|
|
LED Color
|
Optional
|
|
Number of Positions
|
8 and 10 Positions or Others
|
|
Number of Contacts
|
8 and 10 Contacts or Others
|
|
RoHS Compliant
|
Yes
|
|
Solder Temperature
|
230 TO 240 degr.C 5-10 SECONDS
|
|
Solder High-Temp Option
|
260 degr.C 5-10 SECONDS
|
|
High Temperature Option
|
-40 to +85 Degrees F
|
|
Operating Temperature
|
-0 to 70 Degrees C
|
