Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: JK0-0161NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specifications: |
JK0-0161NL |
P.N: |
LPJK2064CNL |
Ethernet: |
POE Gigabit |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Port: |
1x1 |
Specifications: |
JK0-0161NL |
P.N: |
LPJK2064CNL |
Ethernet: |
POE Gigabit |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Port: |
1x1 |

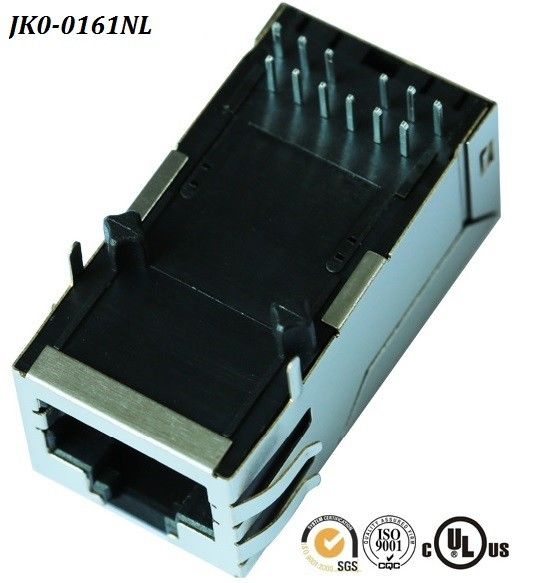

Single Port RJ45 Connector with 1000 Base-T Integrated Magnetics & PoE,Without LED,Tab Up,RoHS | |
LINK-PP Part Number | LPJK2064CNL |
Pulse Part Number | JK0-0161NL |
Application-Lan | ETHERNET(PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | WITHOUT LEDS |
Latch | TAB UP |
Number of Ports | 1X1 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.531 |
Package Height (mm) | 13.50 |
Package Length (Inches) | 1.30 |
Package Length (mm) | 33.02 |
Package Width (Inches) | 0.654 |
Package Width (mm) | 16.60 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | WITH |
Speed | 1000 BASE-T |
Temperature | 0 TO 70℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
Characteristics
|
1x 10/100/1000 Base-T single port POE RJ45 With Integrated Magnetics
|
2)SMD,THT and THT with USB
|
|
3)350μH min,OCL with 8mA bias
|
|
4)Complies with IEEE 802.3
|
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c )
available
|
|
6)PoE/PoE+ (350mA~720mA)
|
|
Operation/Application
|
×DSL Modems
|
EMbedded PC
|
|
LAN Applications
|
|
Hub,Router,Switches
|
|
AVR,DVR
|
|
Electrical Characteristics
|
|
Shielded
|
with/without
|
Termination Features
|
|
EMI Finger
|
with/without
|
Termination Method
|
Solder
|
Body Features
|
|
LED
|
with/without
|
EMI Fingers - Top and Sides
|
with/without
|
Latch Orientation
|
Tape UP/Down
|
PCB Tail Length
|
3.5±0.5mm
|
Height Above Board
|
0.536" (11.15~13.61mm)
|
Contact Features
|
|
Preloaded
|
YES
|
Contact Termination Type
|
Through Hole
|
Connector Style
|
Jack
|
Cores Number
|
8
|
Industry Standards
|
|
EoHS/ELV Copliance
|
RoHS compliant,ELV compliant
|
Lead Free Solder Process
|
Wave solder capable to 265°c
|
RoHS/elv Compliance History
|
Always was RoHS Compliant
|
Conditions for Usage
|
|
Applies To
|
Printed Circuit Board
|
Environmental Conditions
|
Office / Premises
|
Operating Temperature(°c)
|
0°c~70°c / -40°c~+85°c
|
Other Features
|
|
Magnetic Circuit
|
3D15
|
Status Indicator
|
LED
|
Left LED Color
|
Optional
|
Right LED Color
|
Optional
|
Decoupling capacitor
|
with/without
|
Rear PCB Ground Tab
|
with/without
|
Singal Lead Quantity
|
8
|
