Home > products > Vertical RJ45 Jack > 1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL

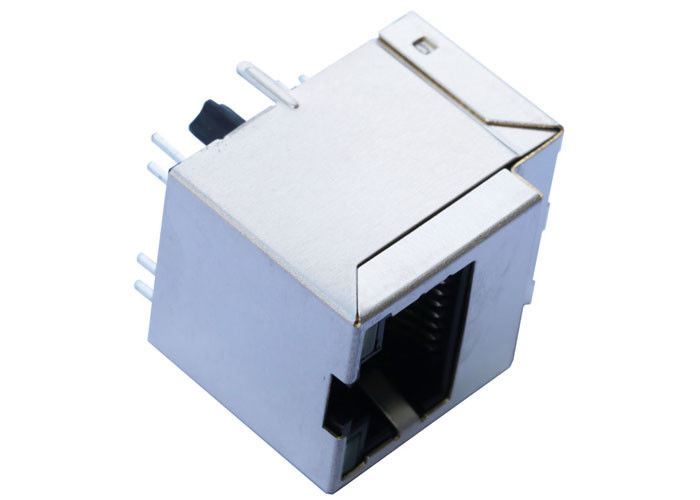

1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 1-1840419-3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Optional

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

multi port connector

P / N:
1-1840419-3
Cross P / N:
LPJD1011BENL
Speed:
10/100 BASE-T
Port:
1x1 Vertical
LED Option:
GREEN / YELLOW
Shielding:
Shielded, EMI Finger
P / N:
1-1840419-3
Cross P / N:
LPJD1011BENL
Speed:
10/100 BASE-T
Port:
1x1 Vertical
LED Option:
GREEN / YELLOW
Shielding:
Shielded, EMI Finger
1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL

1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL






Quick Details



  • 1-1840419-3
  • Vertical RJ45 Jack
  • Meets Network Routers / modules / Switches
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJD1011BENL

Features

  • Specially for fingerprint attendance machine board interface
  • Internet phone cameras

  • Single port, Multi-port and Stackable configurations (Thru-hole)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the Ethernet network analyzer system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Specifications





Characteristics





1-1840419-3 180 Degree RJ45 Female Jack For Smart IP Cameras Across LPJD1011BENL

2)SMD,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3

5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )

available

6)PoE/PoE+  (350mA~720mA)
Operation/Application         ×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics
Shielded with/without
Termination Features
EMI Finger with/without
Termination Method

Solder

Body  Features
LED with/without
EMI Fingers - Top and Sides with/without
Latch Orientation Tape UP/Down
PCB Tail Length 3.5±0.5mm

Height Above Board

Optional

Contact  Features
Preloaded YES
Contact Termination Type Through Hole
Connector Style Jack

Cores Number

8
Industry Standards
Lead Free Solder Process Wave solder capable to 265°c
RoHS/elv Compliance History Always was RoHS Compliant
Conditions for Usage
Applies To Printed Circuit Board
Environmental Conditions Office / Premises
Operating Temperature(°c) 0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit 3D15
Status Indicator LED
Left LED Color Optional
Right LED Color Optional
Decoupling capacitor with/without
Rear PCB Ground Tab with/without
Singal Lead Quantity 8

Datasheets

E-mail Inquiry to Summer@link-PP.com

Others Name  LPJD1011BENL






BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.





                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti









1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL 0

1-1840419-3 180 Degree RJ45 Female Jack For Smart IP Cameras Across LPJD1011BENL
Type PCB Mount Thru-Hole (THT)
Number of Ports 1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield Available in Shield and Unshield
Connector Type RJ45
PoE Power Over Ethernet Integrated Or Without
Magnetics Magnetic Integrated
Magnetics Speed Magnetics 10/100Mbps Or 1000Mbps
Packaging Tray Options
Tab Location Tab Up and Tab Down Options
LED Color  Optional
Number of Positions 8 and 10 Positions or Others
Number of Contacts 8 and 10 Contacts or Others
RoHS Compliant Yes
Solder Temperature 230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option 260 degr.C 5-10 SECONDS
High Temperature Option -40 to +85 Degrees F
Operating Temperature -0 to 70 Degrees C

1-1840419-3 180 Degree RJ45 Female Jack For Smart IP Cameras Across LPJD1011BENL
