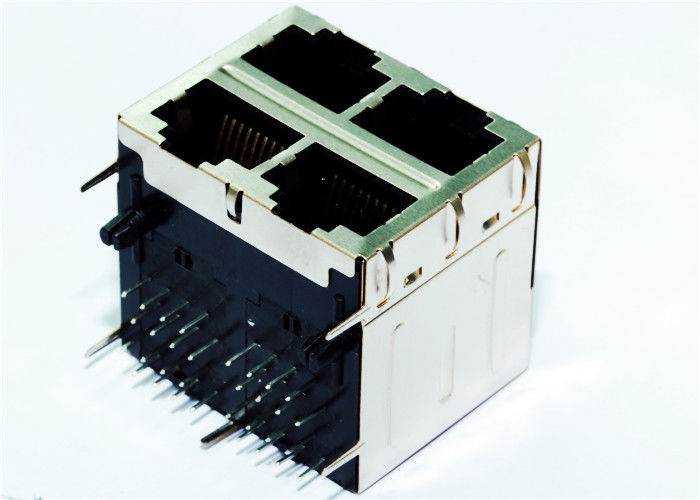

SI-30108-F 10 / 100 BT Stacked RJ45 Jack Shielded Wireless Network LPJ27202CNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJ27202CNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

Family:
MAGJACK 4PORT 100 BASE-T
Spec:
SI-30108-F Belfuse
Equivalent:
LPJ27202CNL
Ethernet:
4x 10/100Base-T
Files:
3D STEP IGS PDF Datasheet
Cross Rf:
LPJ27202CNL =SI-30108-F
Family:
MAGJACK 4PORT 100 BASE-T
Spec:
SI-30108-F Belfuse
Equivalent:
LPJ27202CNL
Ethernet:
4x 10/100Base-T
Files:
3D STEP IGS PDF Datasheet
Cross Rf:
LPJ27202CNL =SI-30108-F
SI-30108-F 10 / 100 BT Stacked RJ45 Jack Shielded Wireless Network LPJ27202CNL
LPJ27202CNL Cross SI-30108-F 10 / 100 BT Stacked RJ45 Jack

  • SI-30108-F Pin to Pin Compatible perfectly
  • Stack Jack CONN MAGJACK 4PORT 100 BASE-T
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,REACH
Characteristics


4x 10/100 Mbps Magjack Shielded no LED
2)SMD,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics

Shielded
with/without
Termination Features

EMI Finger
with/without
Termination Method
Solder
Body  Features

LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features

Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards

Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage

Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features

Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
